New type CCD Camera Sheet Auto Feeding Sticker Cutting Machine, A3+Sheet Label Cutter Digital Label Die Cutter

A3+Sheet Label Cutter Digital Label Die Cutter

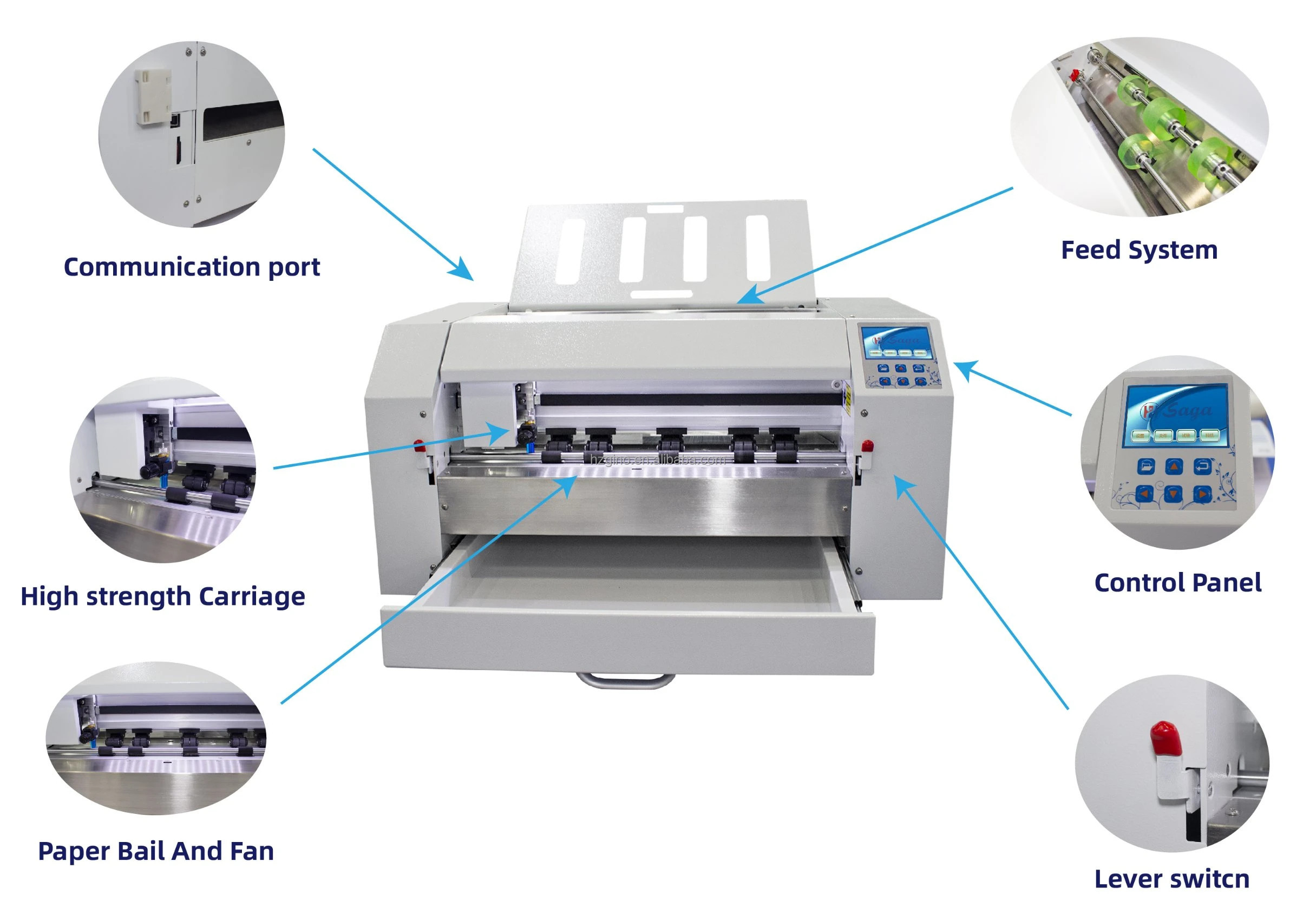

Feature

1. Lightweight and space -saving design，suitable for desktop use.
2. Optimized auto sheet feeding mechanism ,ensures productivity with minimized paper jams
3. Auto -recognition of registration marks ,guarantees scanning and cutting accuracy，multi -cutting jobs

 4. The Interoperable Multi-sensor guarantees excellent cutting results
5. Optimized sheet marking maximized the sheet utilization

Get a free quote

Product Detail

Descriptions

A3+II PRO CCD Automatic feeding sticker cutting machine

Application: Self-adhesive sticker,label etc.
ADVANTAGE： The latest Sheet Cutter has been upgraded with CCD Camera which allows the
machine to read QR code for registration and it increases the scanning speed by 100%+.


Size Information

Model	A3+CCD
Scanning speed	5s
Cutting accuracy	0.05mm
Max. Cutting Speed	960mm/s
Cutting Tool	cemented carbide blade
Cutting Method	Half Cut & Full Cut
Max. force	750g (3g/step)
Media capacity	80grm paper, 120sheeets.
Media length	200~500mm
Media width	190~330mm
Marterial thickness	50-300gsm
Communication method	USB/SD
Drive System	Servo control system (silent, high speed)
QR code recognition	Yes
Software	1) offline Coreldraw plug-in OR
Software	2)on-line SignMaster software
weight	NW/GW: 45kg/65kg
Dimension (without packing)	120x65x35cm
Packing size	85x70x55cm/0.33cbm
