2022 New update automatic feeding A3+ Die cutting machine /kiss cutting/ label cutting color box cutting and creasing machine

Multi functional automatic adsorbed sheet cutter

Our ASG-1907 is designed for multiple functions including cutting and creasing. With dual tools, it can easily make full cutting, kiss cutting, creasing and plotting. The unique air suction paper feeding method, suitable for wider range of materials, including self-adhesive, paper cards, films and so on. It is the ideal machine for reliable and automatic production of labels and small packaging boxes, great choice of copy shops, product labeling, office applications and many others.

Get a free quote

Product Detail

Descriptions

Feature
1.New 7 inch full touch with more intelligent interface interaction
2.Independent software integration with multi function and wide model compatibility
3.Multiple connecting ways :USB/U disk/LAN/Wifi;
4.Online/offline QR code mix cutting and auto finding function;
5.Durable double carriage design,can do kiss cut/full cut/dotted cut,creasing /drawing;
6.One-click to calibrate the CCD offset value ;
7.The live picture can be displayed on the screen directly,which is more convenient;
8.Add smooth point-off cutting to avoid damage from holder's rapid up and down

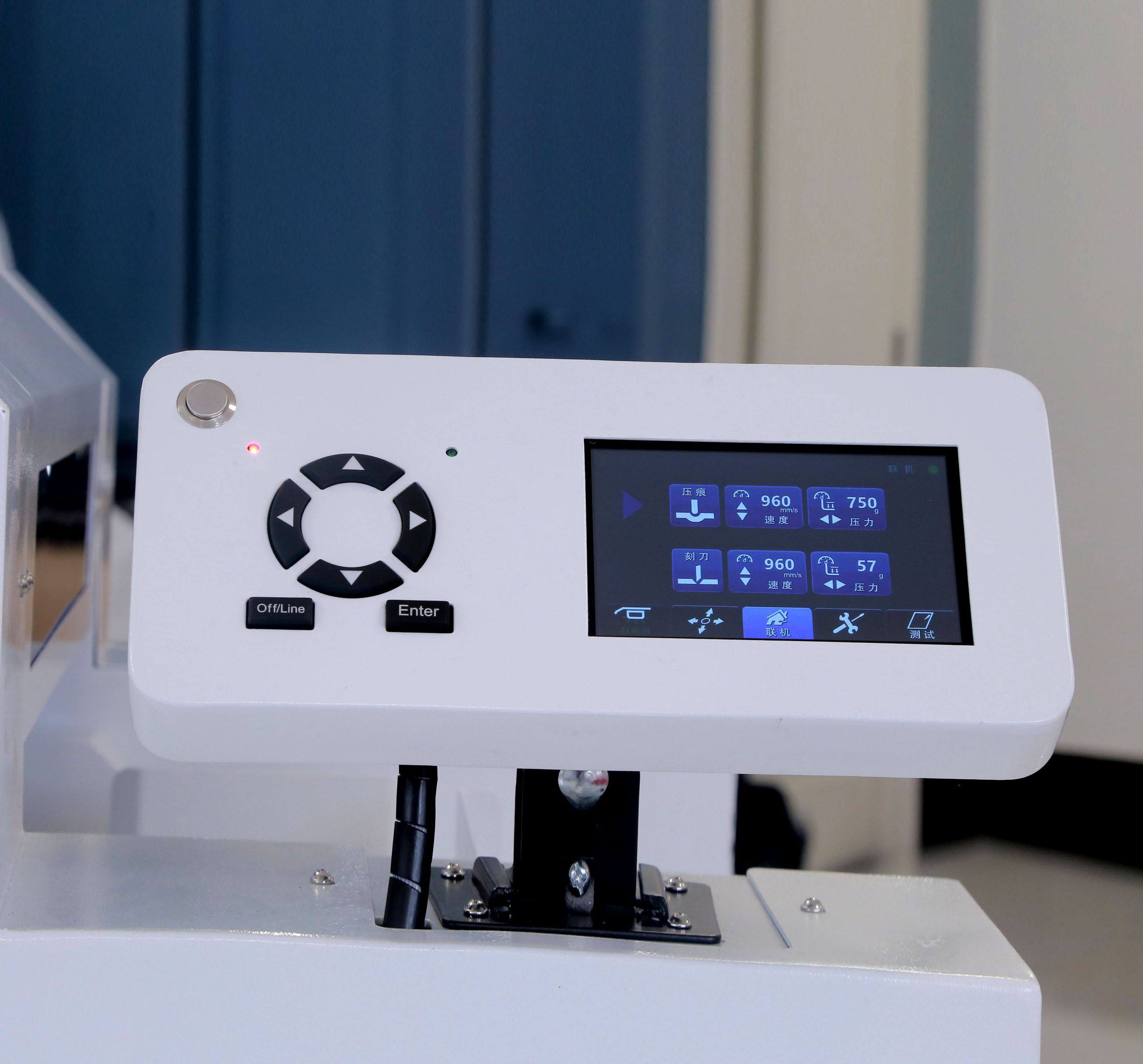

New 7 inch full Touch Screen operation system and easy to use panel button

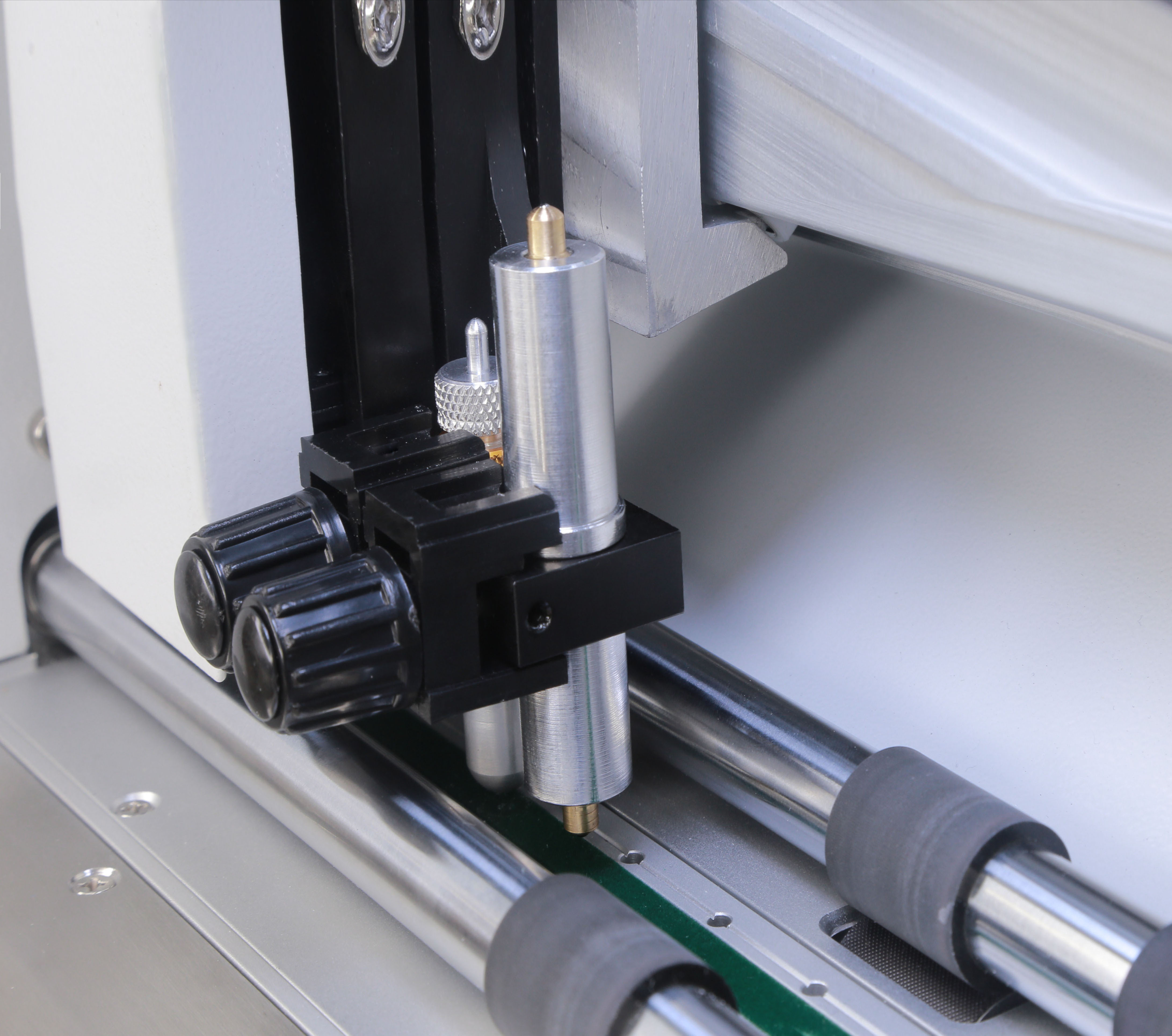

Dual creasing tools:creasing &Cutting (perforating)

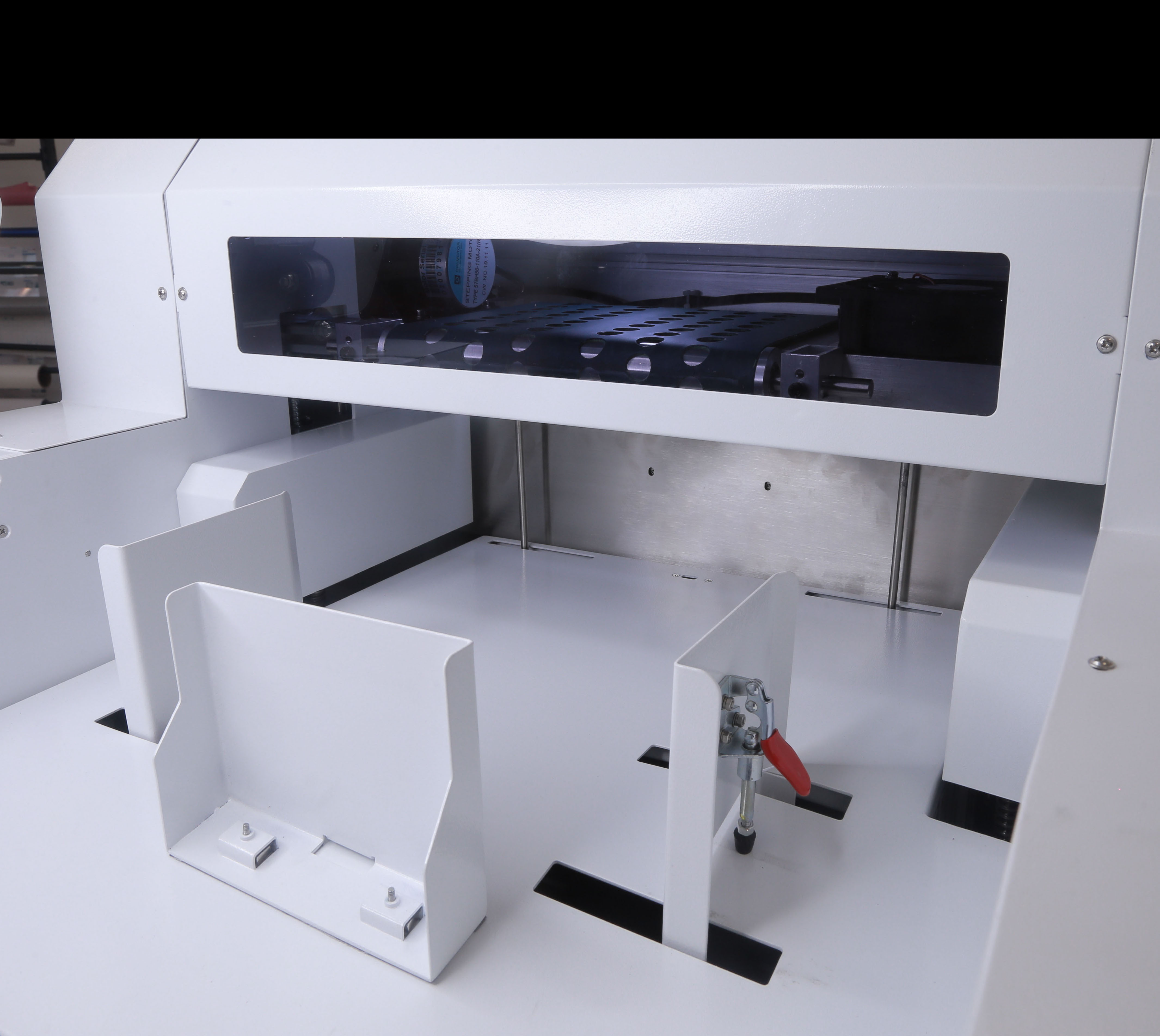

Top air suction feeding system to avoid several sheets feeding together

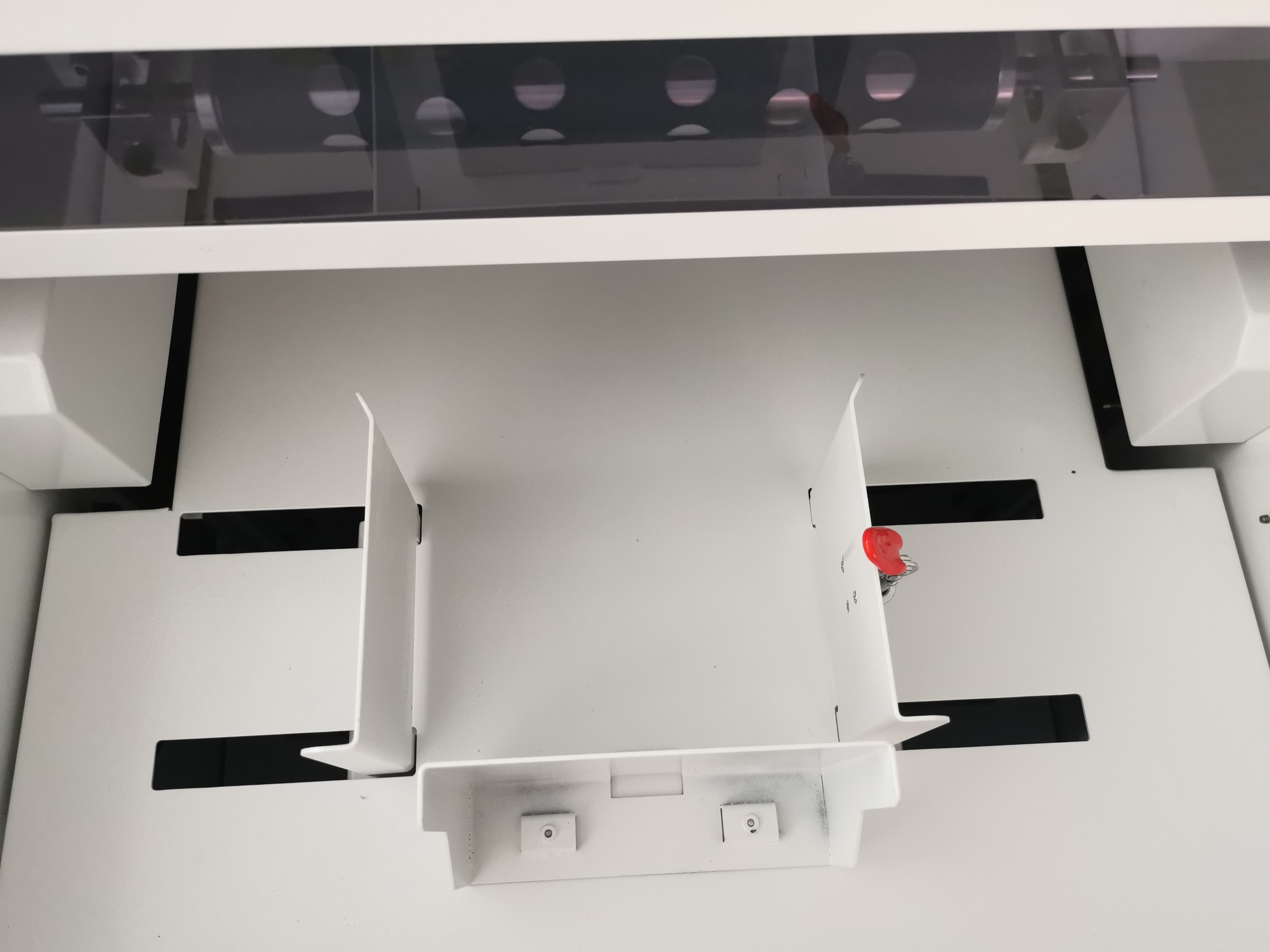

Easy adjustable paper stack feeding table


Size Information
Model name
ASC1907A
cutting control system
X- high power brushless servo motor
Y-high power brushless servo motor
Positioning sensor type
Digital camera (CCD)
Control panel
7 inch capacitive touch screen
Number of tool holders
Double tool holders
Blade types
Blade,creasing tool and pen
Machine performance
Media hold method
vacuum suction
Scanning code type
Mark or QR code
Maximum cutting size
A3+ (330mm*483mm)
Scanning speed
About 5s
Cutting speed
15-1050
Cutting force
creasing :0-750gf
Blade:0-750gf
Internal storage space
Memory size :128M Function : for storing cutting files use
Mechanical resolution
0.02mm
Programmable resolution
HPGL 0.025mm
Repeat precision
<=0.05mm
Cutting media types
Self -adhensive paper ,cardstock,etc
Software and compatibility
Connectivity
USB/U disk/LAN /Wifi
Source
Embedded Disk/net share
Software and compatibility
Professional digital cut software CutStudio
Coreldraw/Illustrator Plug-in
Power and working environment requirements
Working power
Maximum 350W
Voltage and current
100VAC-120VAC,50/60HZ ,Maximum current 6.8A
220VAC-240VAC,,50/60HZ ,Maximum current 3.4A
Dimensions and weight
Actual dimensions
L740mm*W790mm*H1360mm
Package dimensions
L970mm*W970mm*H850mm
NW/GW
117Kg/149Kg
Working samples
Packing & Shipping
