2021 NEW Full Automatic A3 Air auto feed laminator with creasing function ,multi functional laminating machine

Auto-3835A automatic air feeding creasing and lamination machine ,multifunctional

laminating &creasing 2 in 1 machine ,automatic air feeding, automatic separating to sheet , after lamination ,depond on your requests ,creasing machine can do crease /perforating job;

Get a free quote

Product Detail

max laminating thickness	1mm
lamination width	390mm
Creasing machine air feeding max width	340mm

Descriptions

Feature

*Automatic air feeding ,automatic lamination and separating to sheet , full automatic with high efficient;
*Automatic creasing&Perforating,high precision and speed ,save manpower;
*PLC control ,LCD touch screen operation system ,three-phase AC gearbox decelerating motor, frequency conversion speed regulation
*Automatic overlap function ,the overlap size can be setted depend on clients requirement;
*Intelligent temp control,automatic alarm when temperature out of control;
*infrared lamp heating method;
*Anti-curl when single side lamination,with perforating and slitting blade ;

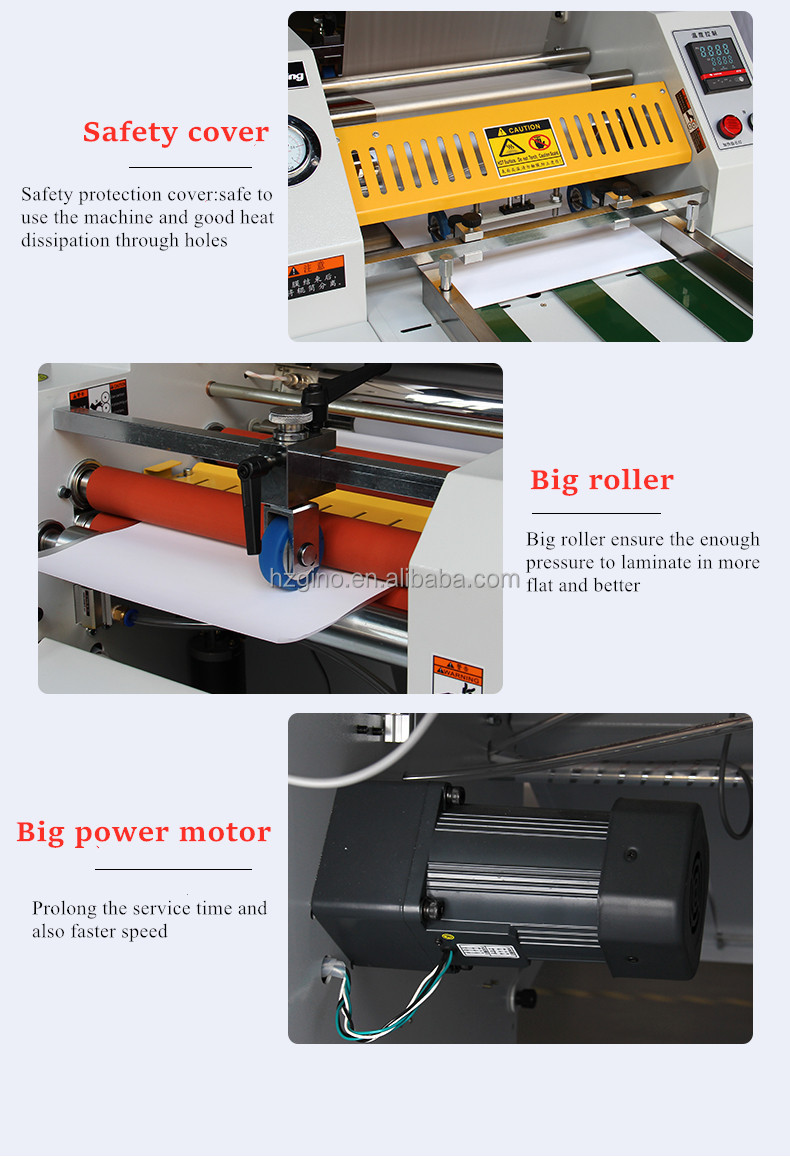

* Heavy duty 110mm mirror steel roller ,bottom 100mm import silicon roller

Detailed Images

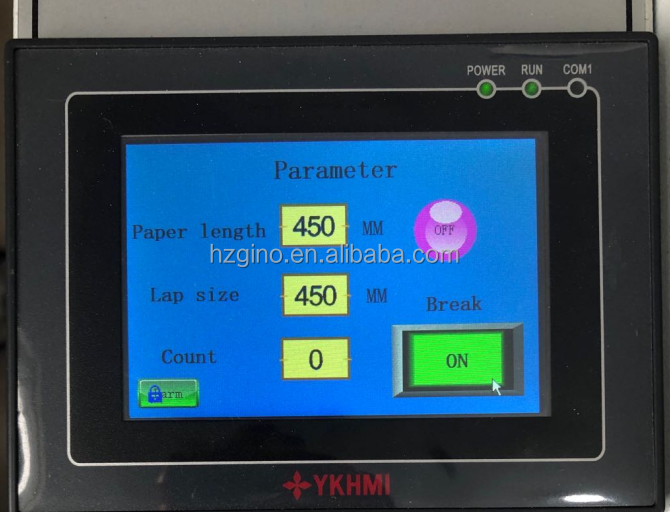

PLC touch screen operation

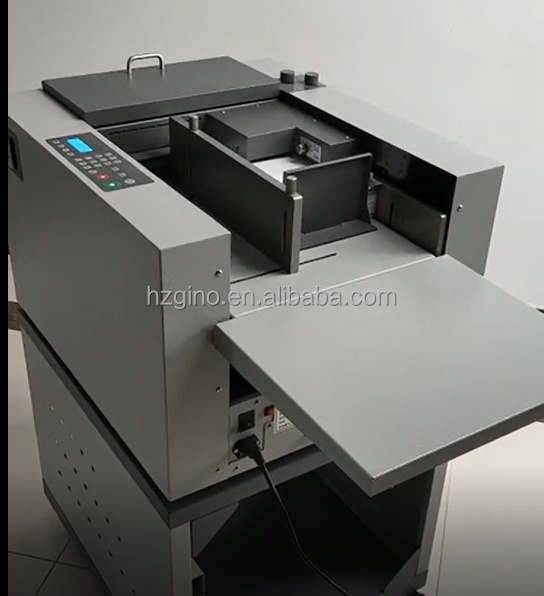

Automatic paper air feeding

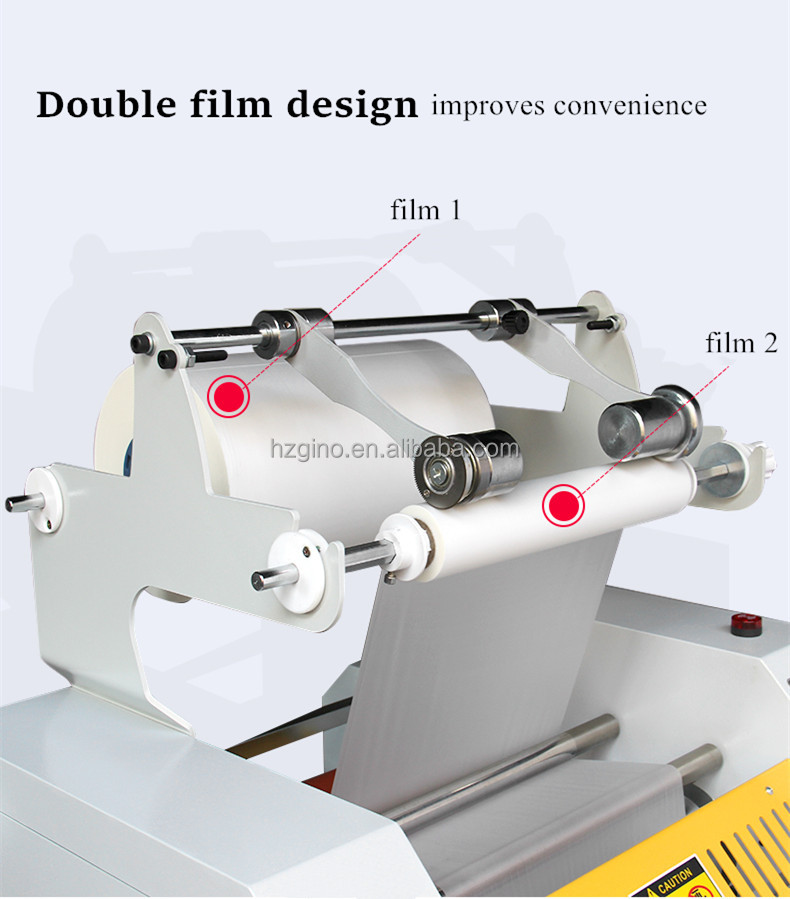

support 2 rolls at the same time,easily change

Working samples

Size Information

Model	Auto-3835A
Laminating width	390mm
Laminating Speed	0-8m/min
Max stack paper	10cm
Max laminating thickness	1mm
Max creasing thickness	350g
Roller diameter	110mm
Max heating temp.	160 degree
Heating method	Infrared Lamp heating
Heating power	3500W
Motor Power	250W
G.W	350KG
Power supply	AC 110V/220V ,50HZ/60HZ
