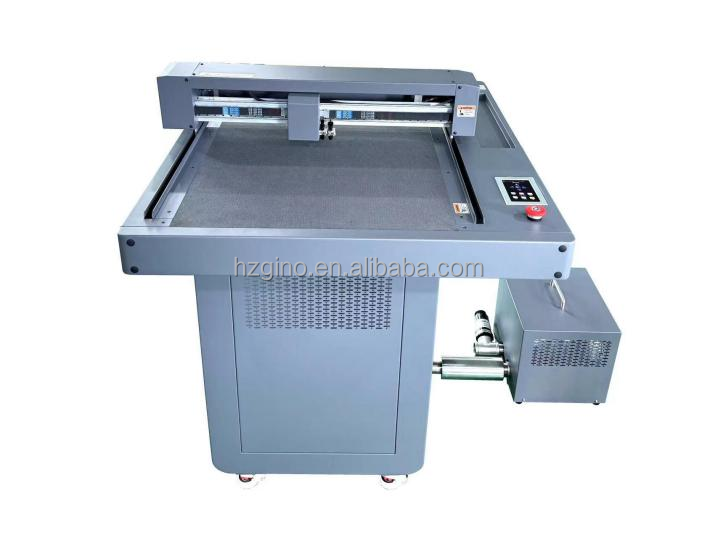

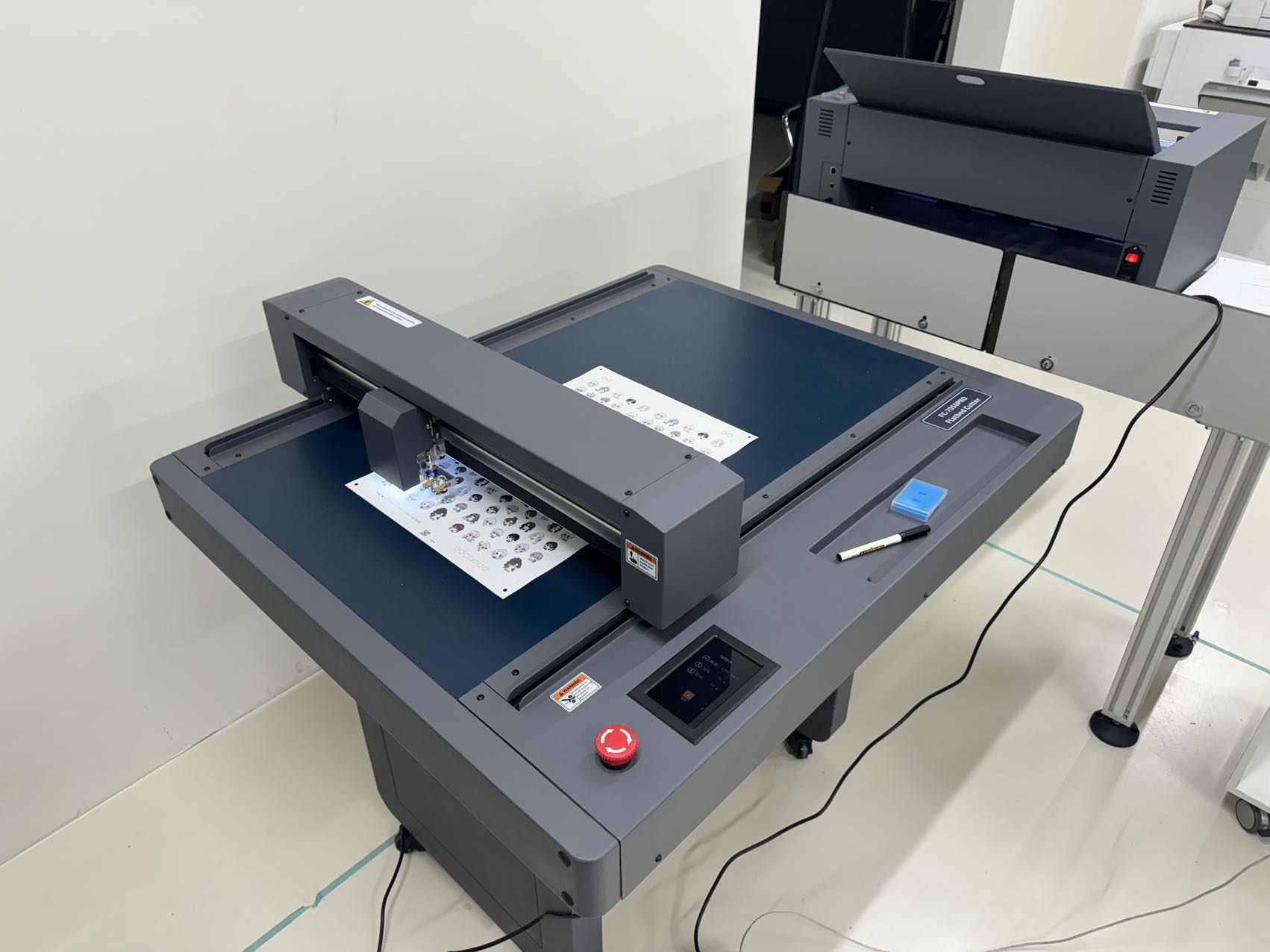

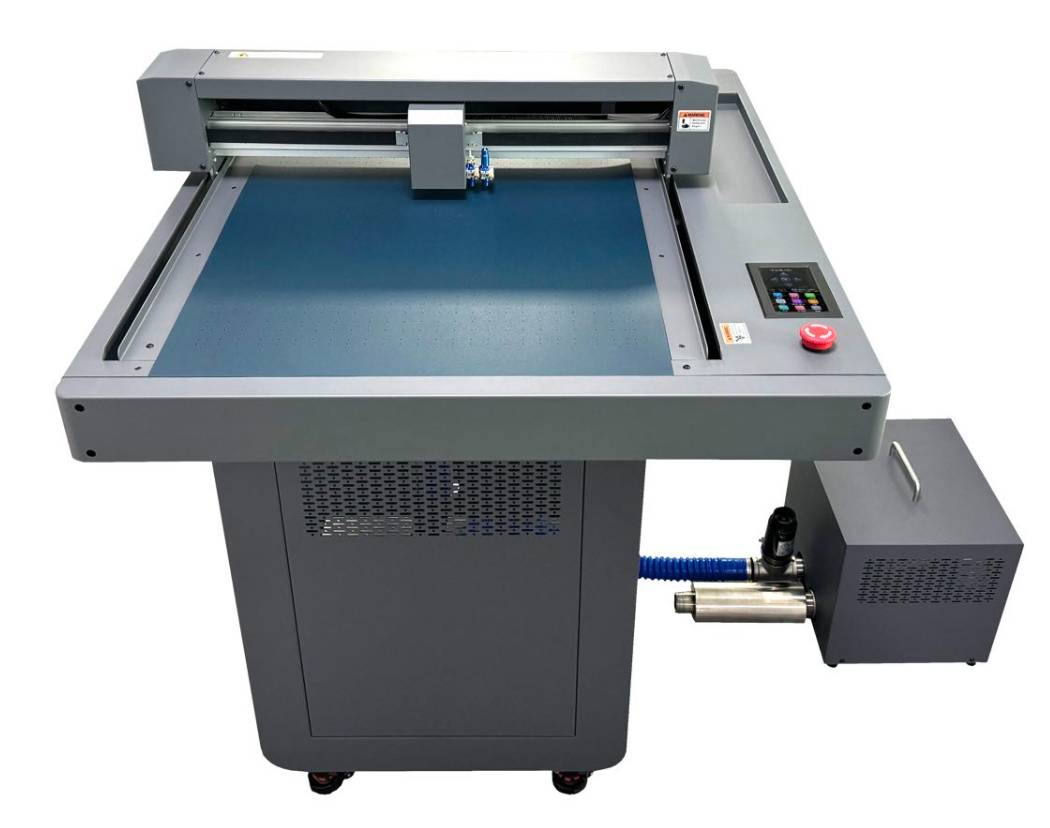

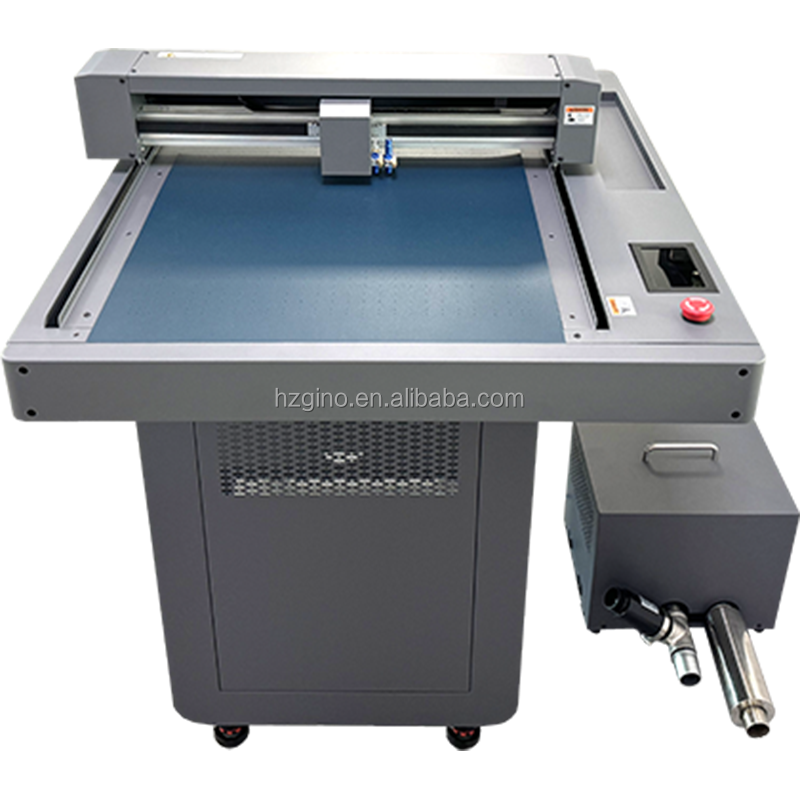

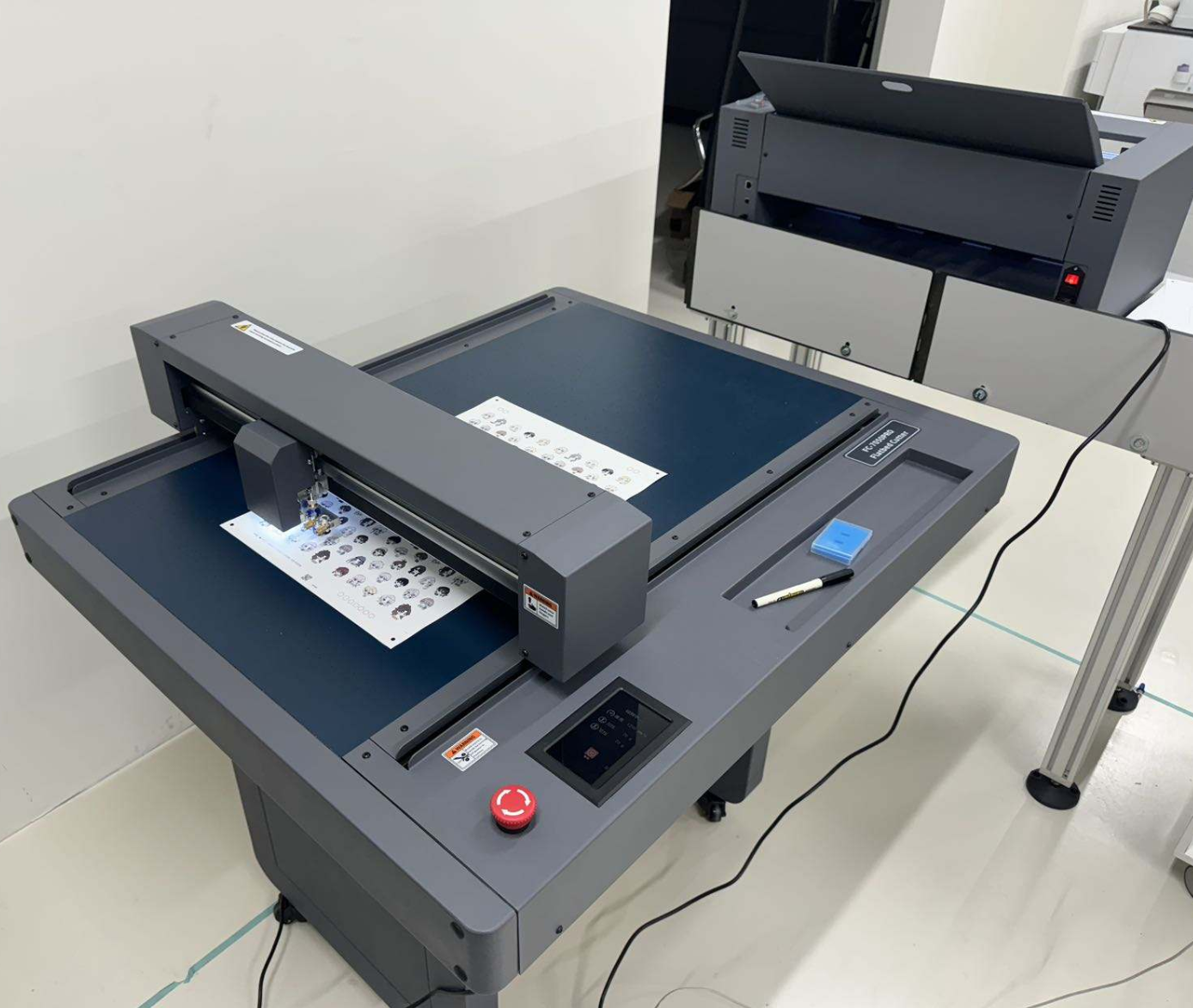

FC-7050PRO Flatbed Cutting Plotter High Quality Paper Trimmer Intelligent Flatbed Digital Cutting Machine

Product Detail

Model	FC7050PRO
Maximum cutting thickness	600g
Maximum cutting speed	120mm/s
Effective cutting range	700*500mm
Machine input interface	USB2.0 (Full Speed)/USB flash drive (Offline)/Network cable
Control panel	5.1-inch LCD touch screen
Package size	120X100X55CM(machine) 44X39x48CM(vacuum pump)
Gross/net weight	100KG/86KG、 21KG /20KG (machine、vacuum pump)



Descriptions

















































1.High resolution camera

The machine uses a high-resolution camera for precise detection of the mark points (mark points are 5 mm in size) And marks can be accurately detected on colored and transparent materials, The marking point is a circle with a diameter of 5mm, which is not only very helpful for customers to design layout documents, but also to save materials and reduce production costs.

2.Two-dimensional code system

The machine can automatically read the two-dimensional code printed on the material: just add the two-dimensional code when making the document and print the two-dimensional code file, the machine will automatically identify the two-dimensional code file and cut it accurately, This function can reduce the time of selecting files, speed up the production speed and improve the work efficiency.

3.Offline mode -USB flash drive

Through the software to make machine recognizable PLT cutting files, the size is stored in the U disk, the U disk inserted into the machine, you can achieve off-line work.

4.Intelligent touch screen

5.1-inch capacitive screen, the icon button is simple and easy to understand, easy to switch the moving speed, one-click back to the starting point, repeated cutting,two-dimensional code working mode,etc

5.Network transmission

A.Network transmission, long-distance communication is still stable.

B. Multiple computers can be connected to the same machine.

C. One computer can control multiple machines.

6.Easy maintenance

Multiple sensors are installed in the machine, and the status of the sensors can be observed in the machine parameters,which is easy for users to find problems and timely maintenance. Many of the machines are cleverly designed to facilitate inspection and after-sales maintenance.

7.Compatible with both Windows and Mac systems

It comes standard with CDR/Al plug-in and LlFENG software. MAC system software is optional.
