A3 size automatic roll laminator with foil transfer function

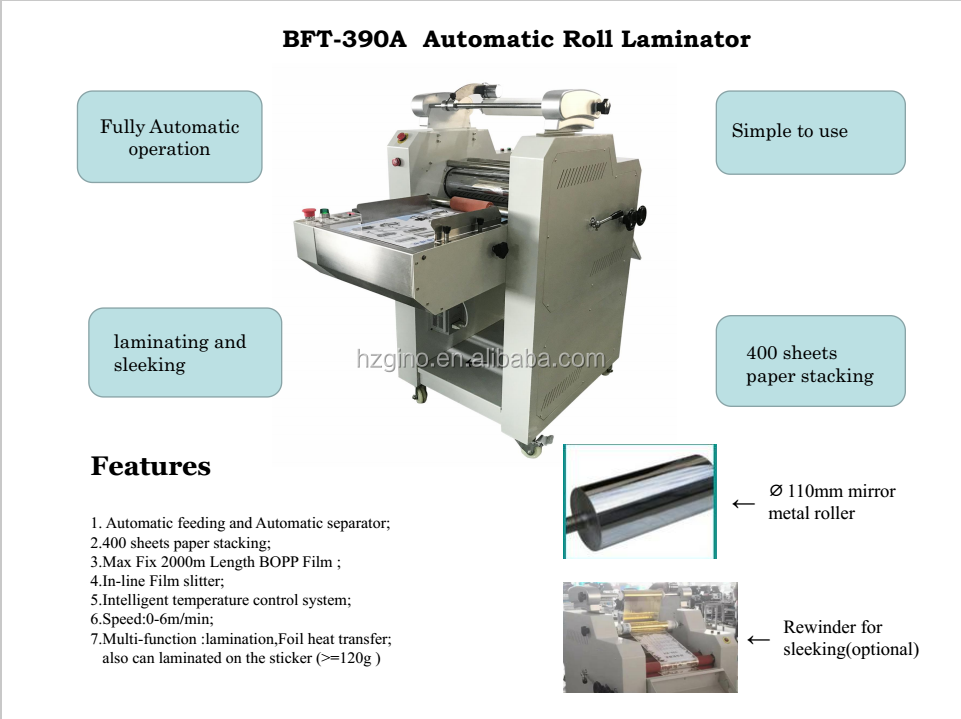

BFT-390A A3 size Multi-fucntion automatic roll laminator with foil transfer function

*automatic paper feeding by friction;
*300 sheets paper stacking
*In-line film slitter

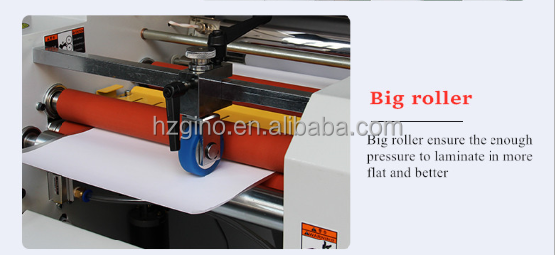

*with 110mm mirror metal heavy duty roller;
*Automatic sheet burster
*Adjustable de-curling device

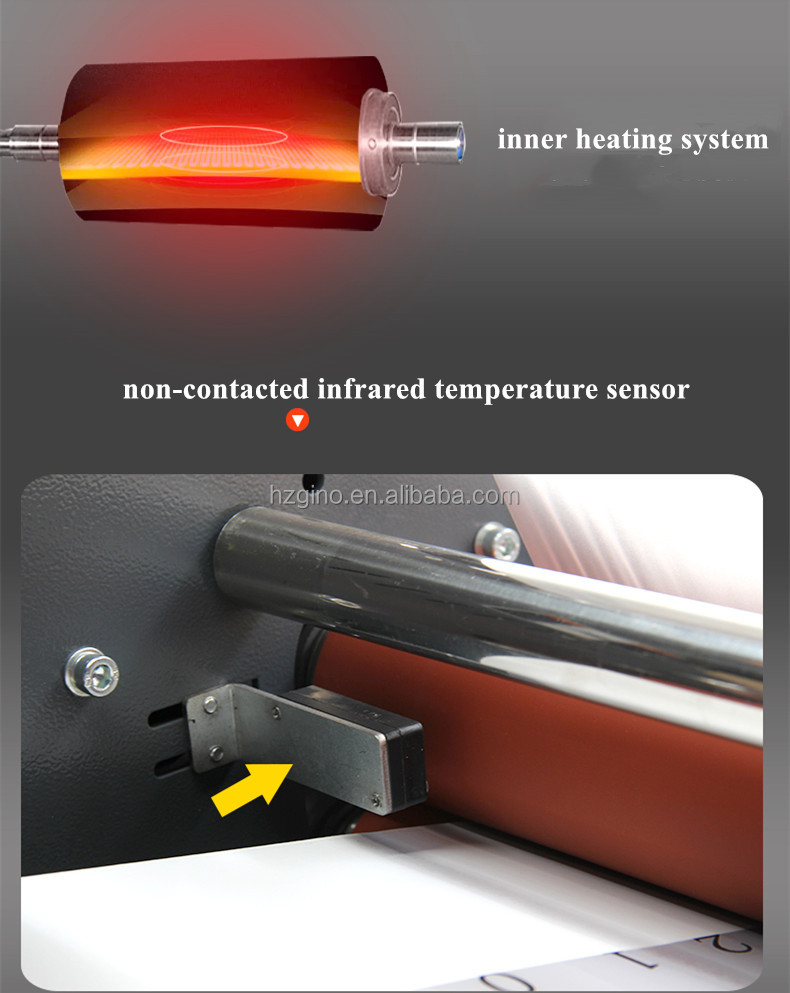

*Infrared quartz heater
* with optional foil transfer function

Get a free quote

Product Detail

Laminating width	340mm, A3 13.3inch
laminating thickness	1mm
laminating temperature	Warm-160 degree ,can be adjusted

Descriptions

BFT-390A A3 size Multi-fucntion automatic roll laminator with foil transfer function

Detailed Images

Size Information

Model	BFT-390A
laminating width	340mm
laminating thickness	≤7mm
laminating temperature	≤160℃
Warm up time	about 15 minute
Max. laminating speed	4.0 m/min
Type of paper	120-350gsm
Roller diameter	110m
Roller pressure	by hand
Power supply	AC100, 110, 220-240V/50, 60HZ
Power	1500W
Dimensions WDH	14207231470mm (with stand)
Machine weight	260kg
