BFT-390A A3 Size Fully automatic paper auto feeding cold and hot roll Maquina laminadora laminating machine

1.auto feeding,auto slitting after lamination;

2.110mm mirror steel roller,bigger pressaure will make the lamination will bright and transparent;

3.180w big power AC motor,speed:0-4m/min;

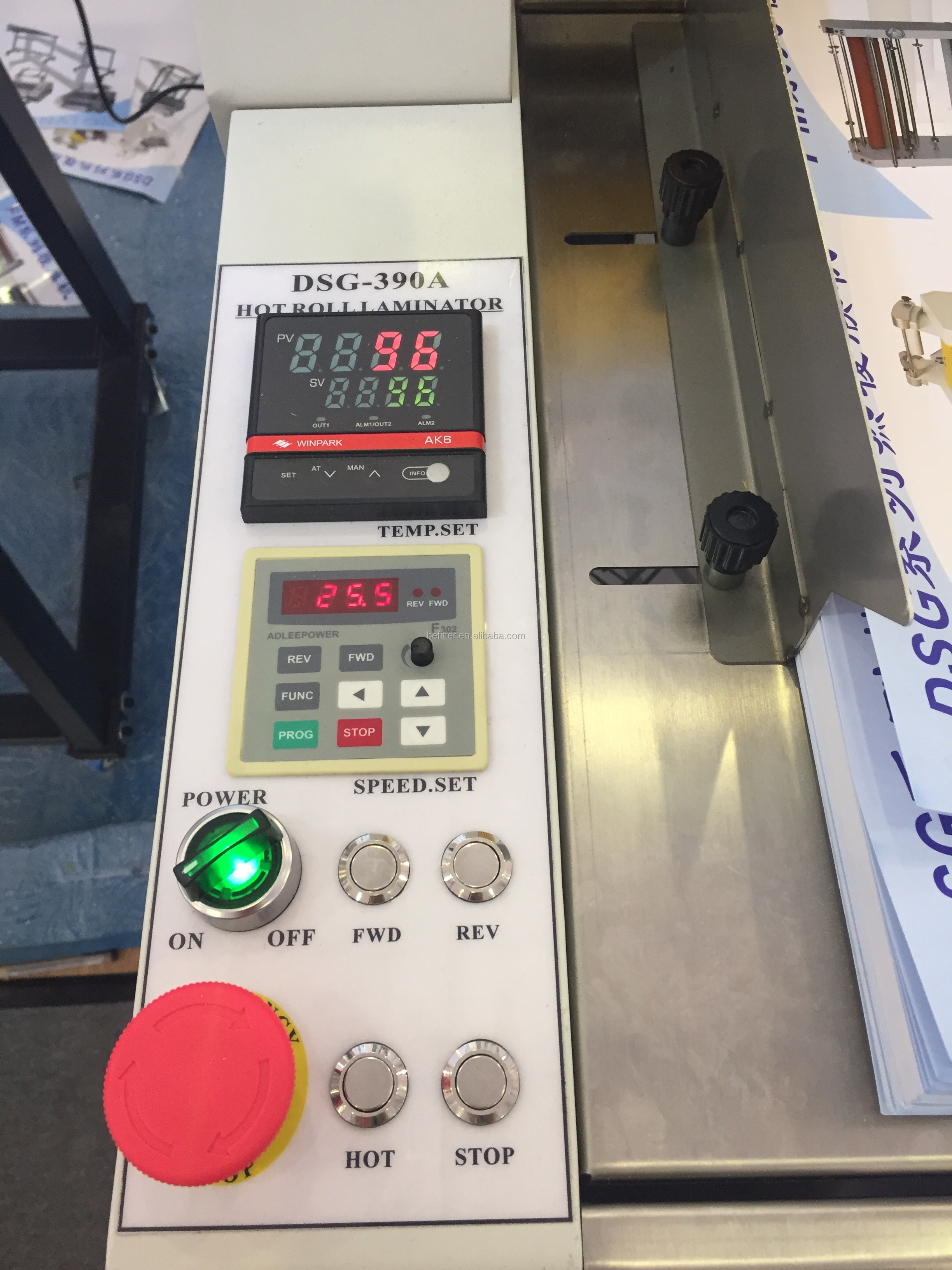

4.Intelligent temperature control system with alarm function,highly precise and easy to operate

Get a free quote

Product Detail

Laminating width	340mm
Laminating thickness	≤7mm
Laminating temperature	≤160°C

Descriptions

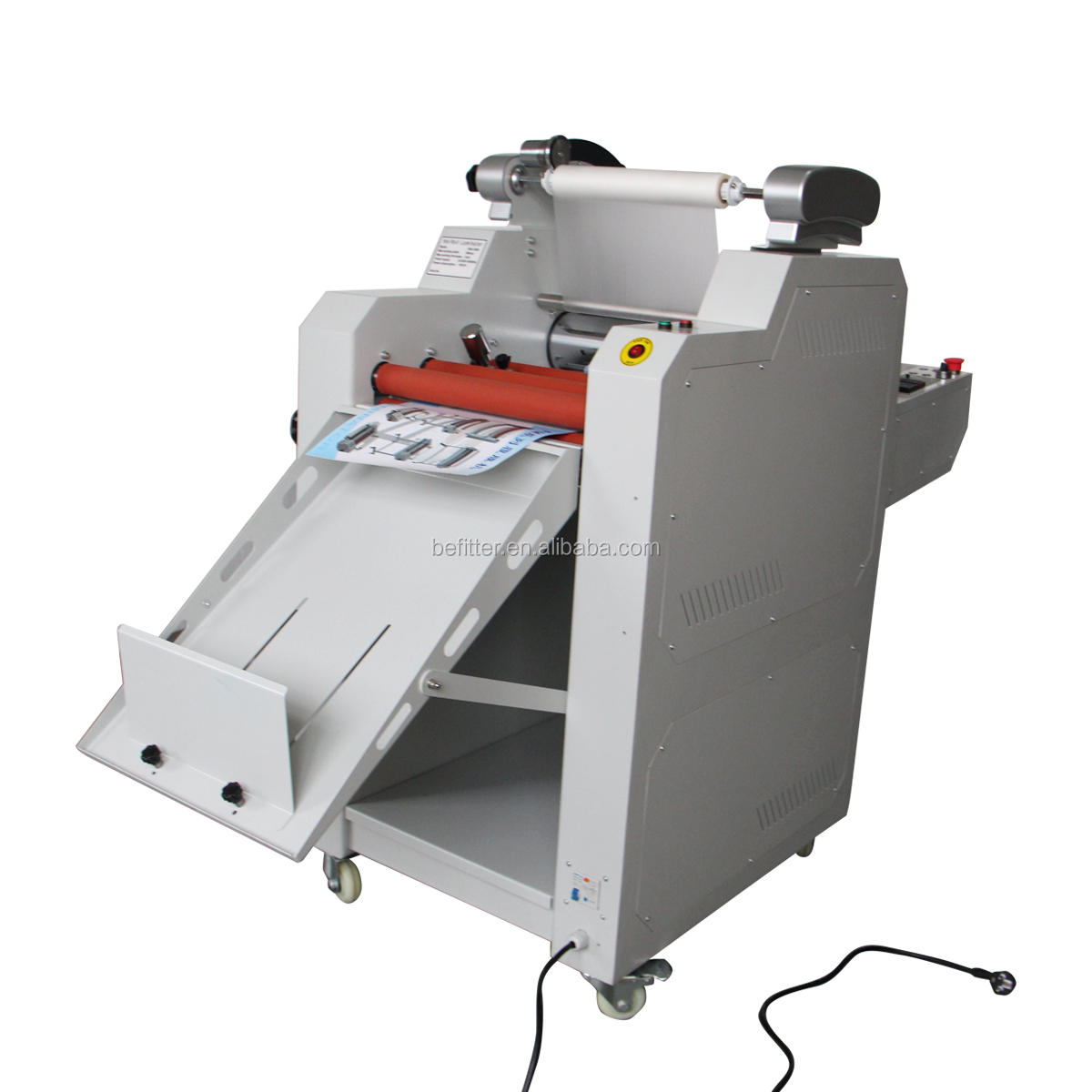

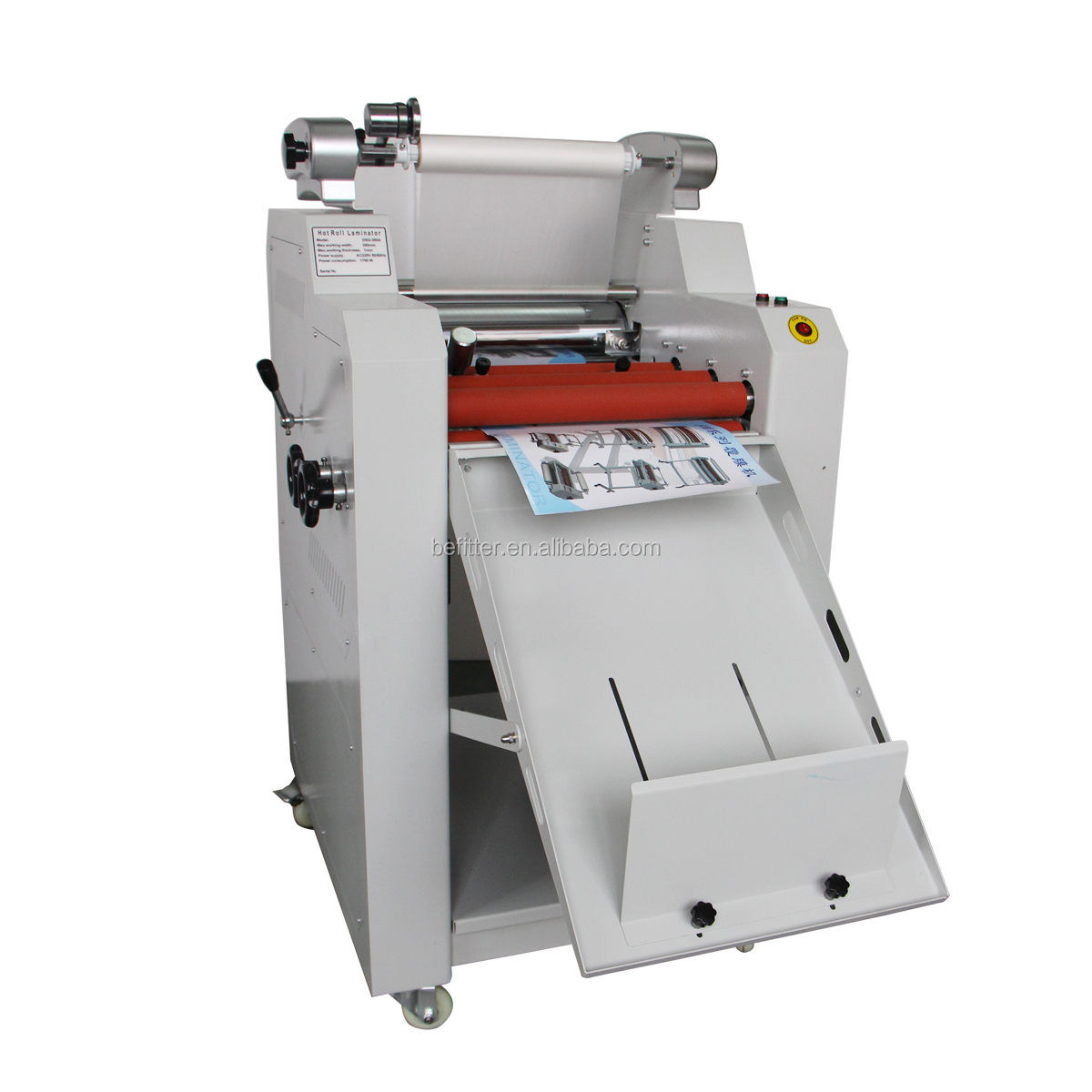

The 390A Automatic One-Side Commercial Laminator is a fully automatic laminator consisting of three integrated components- automatic feeder, laminator, and automatic separator. This unit provides a cost-effective and time-saving solution for on demand applications. It is designed for mid-range to large commercial printers, photo specialty, direct mail, and on-demand self publishers.

Main function:

1.auto feeding,auto slitting after lamination;

2.110mm mirror steel roller,bigger pressaure will make the lamination will bright and transparent;

3.180w big power AC motor,speed:0-4m/min;

4.Intelligent temperature control system with alarm function,highly precise and easy to operate

product details

Technical specifications

Model	390A
Laminating width	340 mm
Laminating thickness	≤7mm
Laminating temperature	≤160°C
Warm up time	About 15 minutes
Max. Laminating Speed	4.0 m/min
Type of paper	120-350gsm
Roller Diameter	110mm
Roller Pressure	by handle
Power Supply	AC100,110,220-240V/50,60 Hz
Power	1500W,
Dimensions WxDxH	1420x723x1470 mm (with stand)
Machine Weight	160 kgs
