HP-520Z 520mm A2 Semi-automatic Single or double Sides Hydraulic Roll laminating machine with automatic cutting

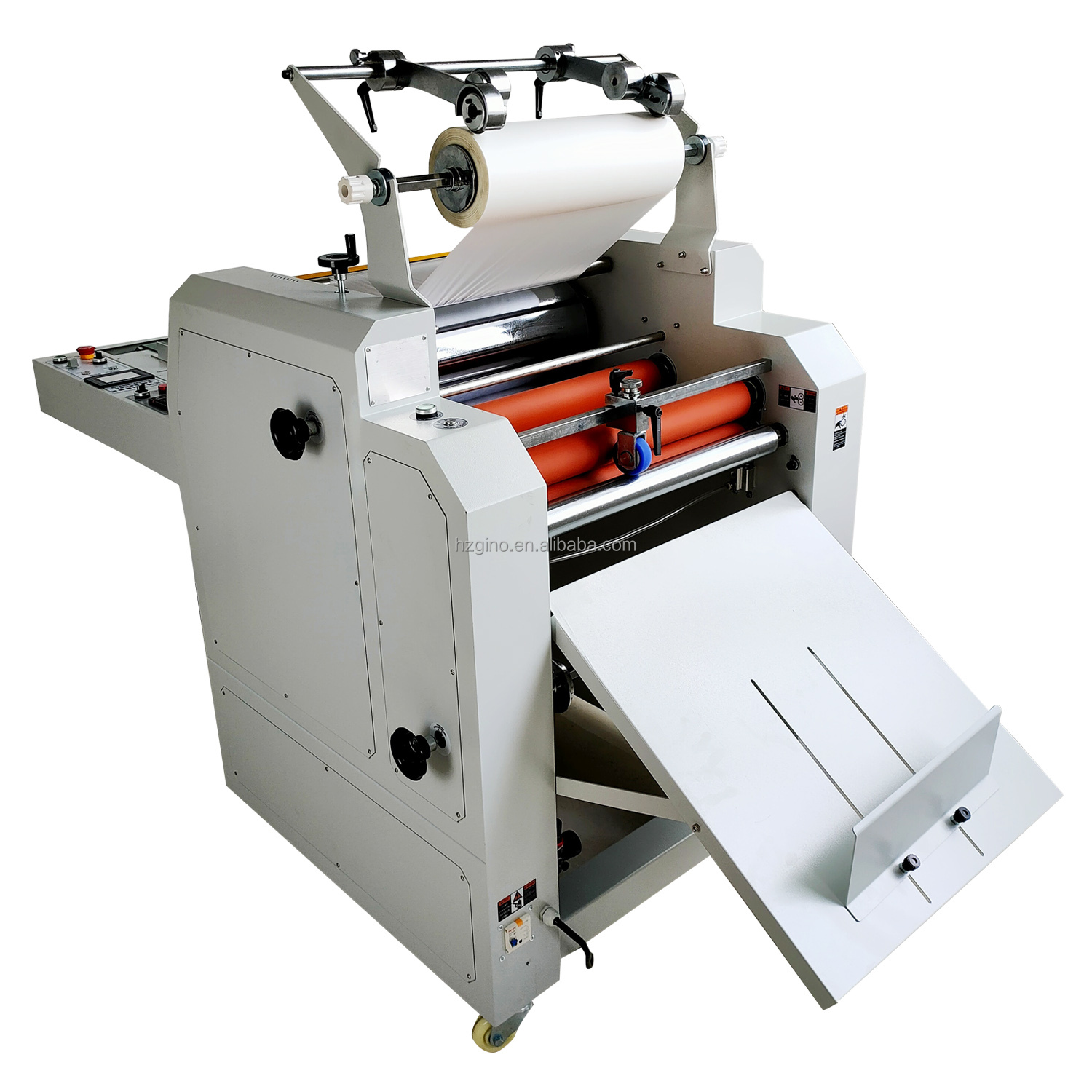

A2 520mm hydraulic laminating machine

HP-520Z Hydraulic laminating machine is compact and economic laminator. It adopts the designs of manual feeding,hydraulic pressuring system, automatic lamination , auto paper separating and Hydraulic pressuring system provides big pressure to guarantee good laminating quality. Excellent laminating performance solves completely the problem of snowflake spots in traditional lamination, and perfects products quality and also reduces users' production costs so much.With cutter and micro-perforating system to make sheet slitting easier after Laminaitng ;
Single side lamination, also can do double sides lamination for option.

The laminated products will be water-proof, durable, of clear picture and good spatial effect. And the machine is widely used for the lamination of packing materials, labels, books, drawings and maps etc.

Get a free quote

Product Detail

max laminating width

520mm ,20.5inch

Descriptions

Feature

PLC control touch screen display system;

With convey belt, manual feed, auto seperate(pneumatic seperate), with overlap function(the overlap size can be setted);

Speed and temperature adjustable;

Hydraulic control system, Shockproof pressure indicator;

Single side anti-curl, with film cutter and perforating cutter;

With 200mm diameter steel roller, and 100mm diameter bottom slicone roller;

The bottom slicone roller is imported, non-sticky high temperature resistant silicone roller;

Detailed Images

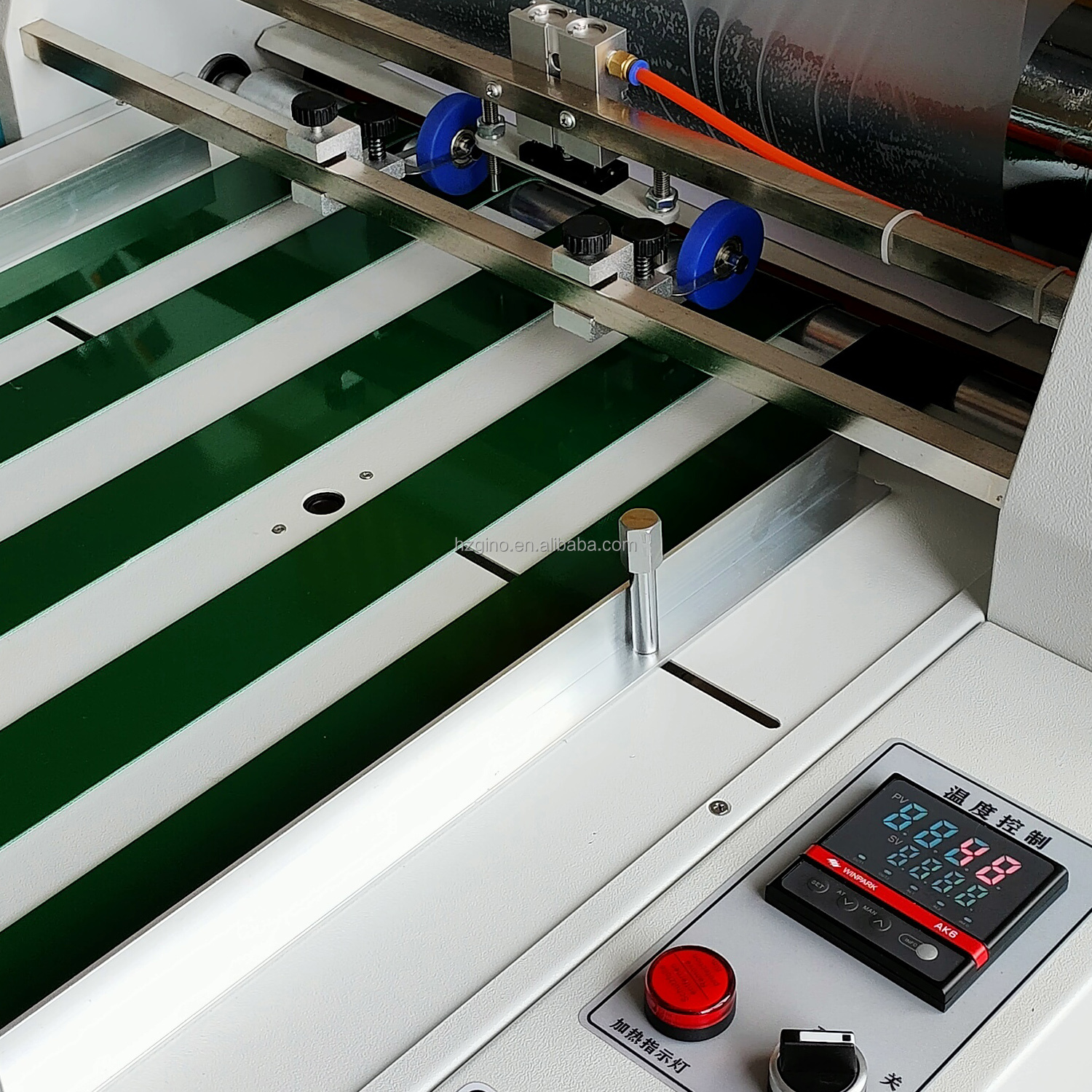

belt feeding,PLC control ,overlap function

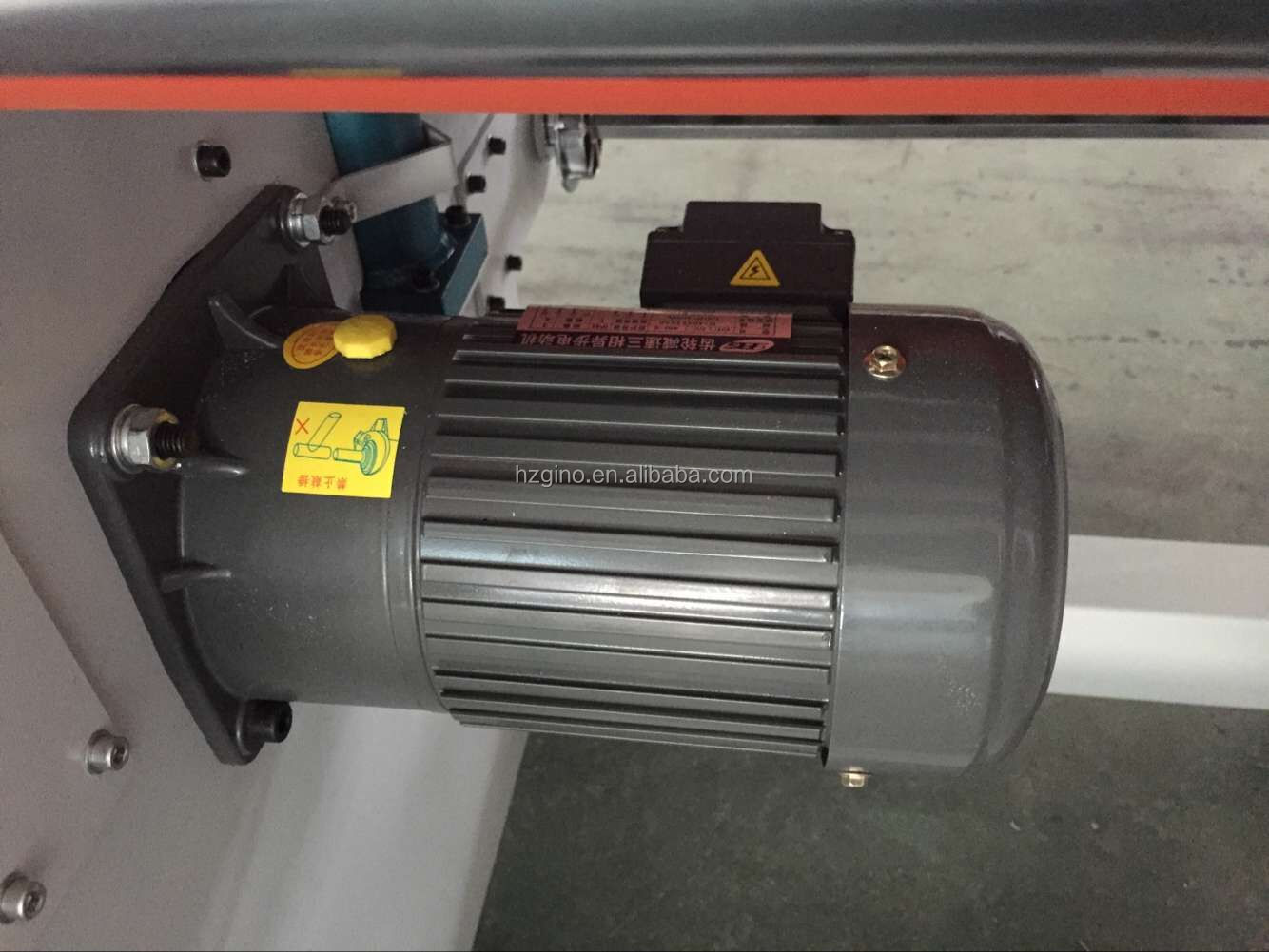

big power motor

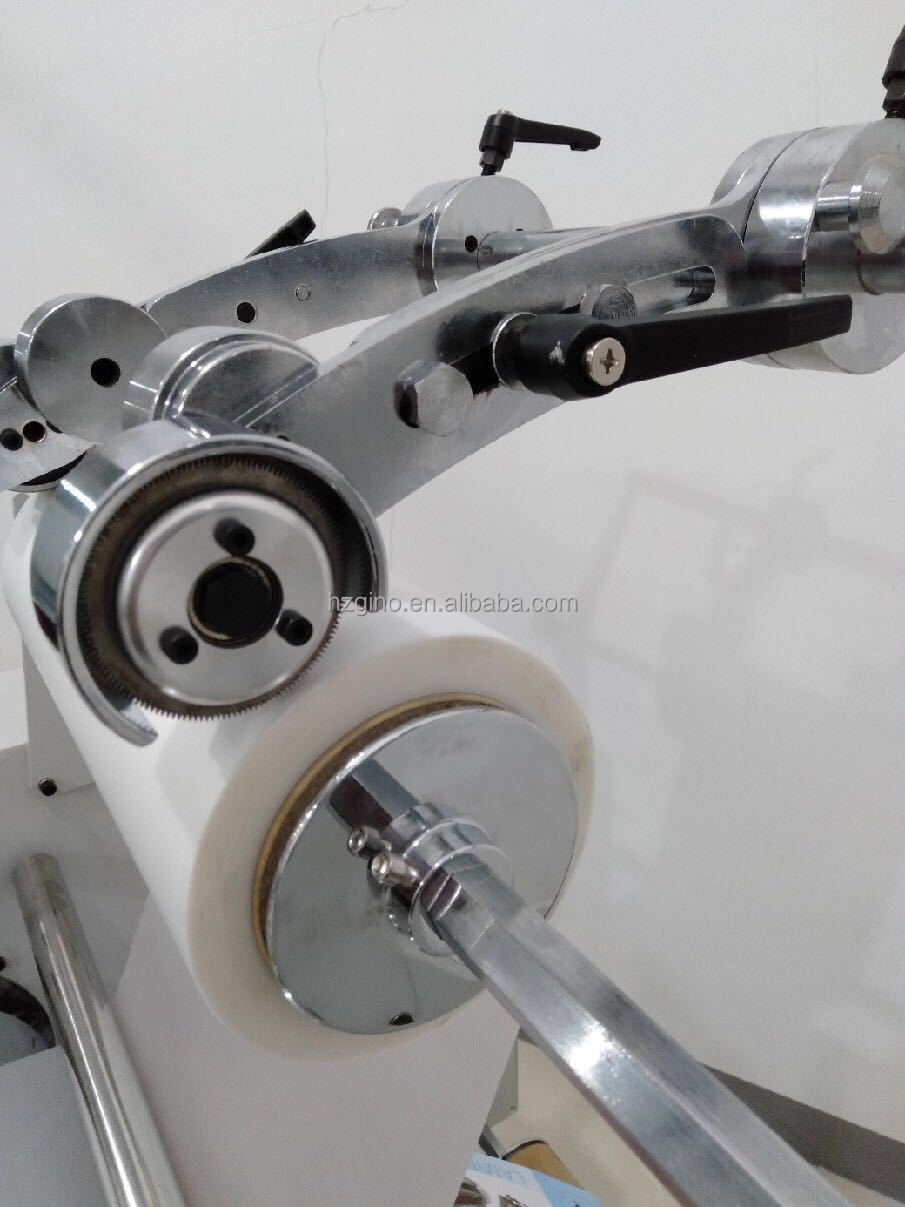

cutting and perforating blade

Size Information

Model	HP-520Z
Max laminating width	520mm
Laminating speed	0-15m/min
20Up steel roller diameter	200mm
Bottom silicone roller diameter	130mm
Max. heating temperature	160degree
Heating method	Infrared heating by hot air
Heating power	3500W
Motor power	400W
Weight	350kg
Power supply	AC 220,110V/50,60HZ
