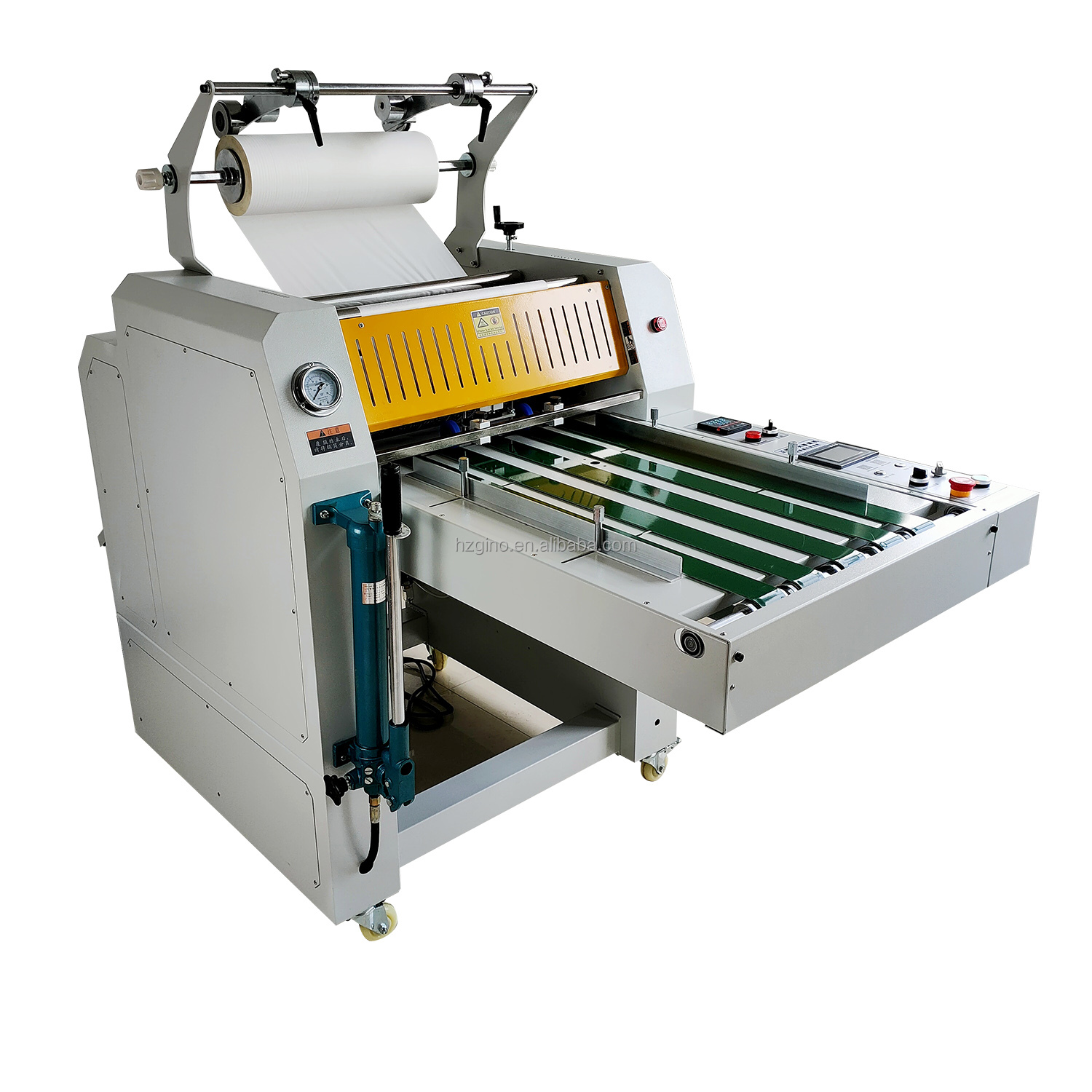

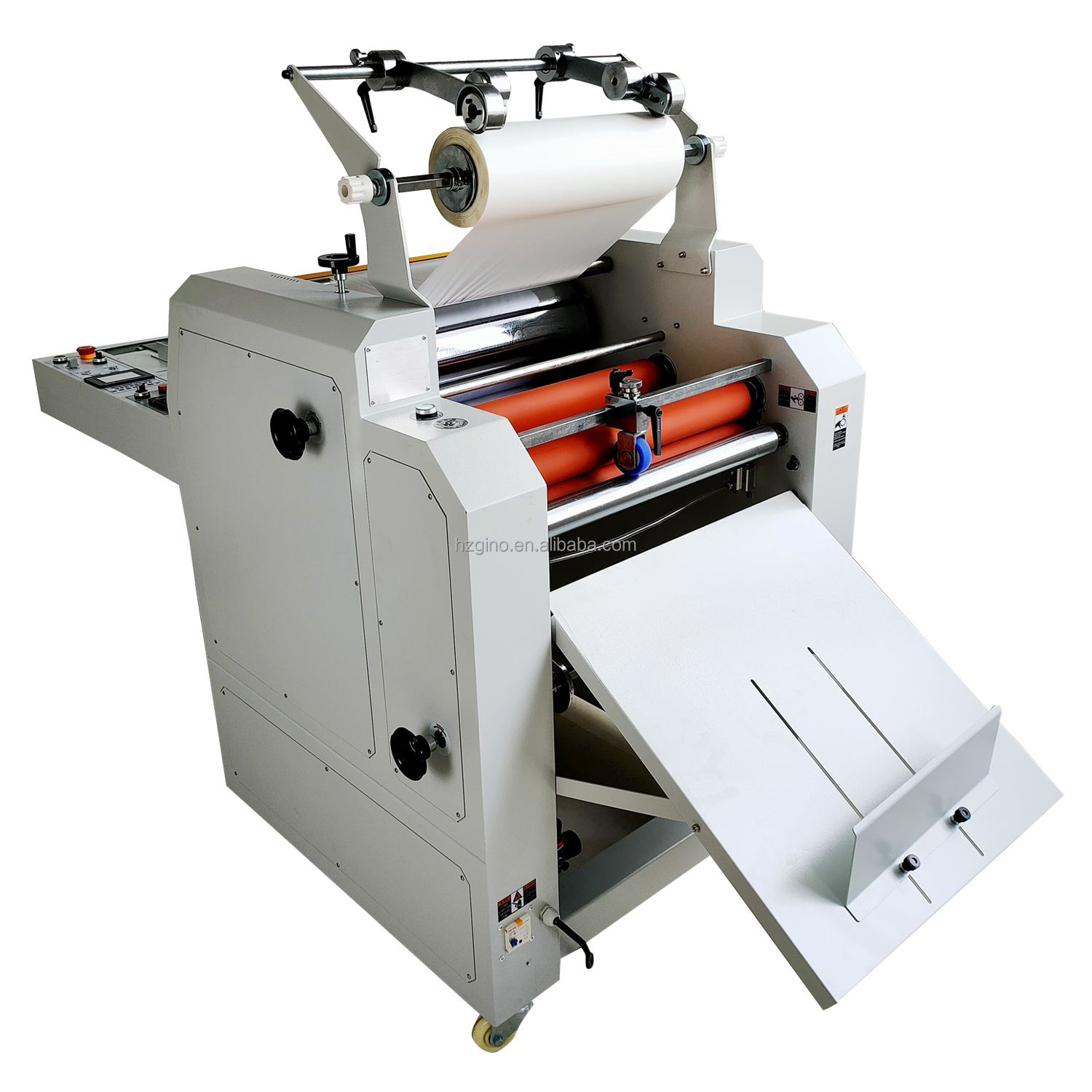

HP-720Z Semi-Automatic 720mm 28inch A1 Hydraulic Laminating Machine Digital printing laminating machine

720mm 28inch thermal laminating machine

HP-720Z Semi-Automatic 72CM 28inch A1 Hydraulic Laminating Machine Digital printing laminating machine

Belt feeding
With Perforating blade and Slitting blade
PLC touch Screen operation system
Automatic separating system
Overlap function,overlap size can be adjusted
Laminating counting function
Laminating speed :0-20m/min
Fit for :copy paper,copper sheet,card sheet,label sheets and so on lamination

Get a free quote

Product Detail

max laminating width

720mm,28inch

Descriptions

Feature
PLC control touch screen display system;

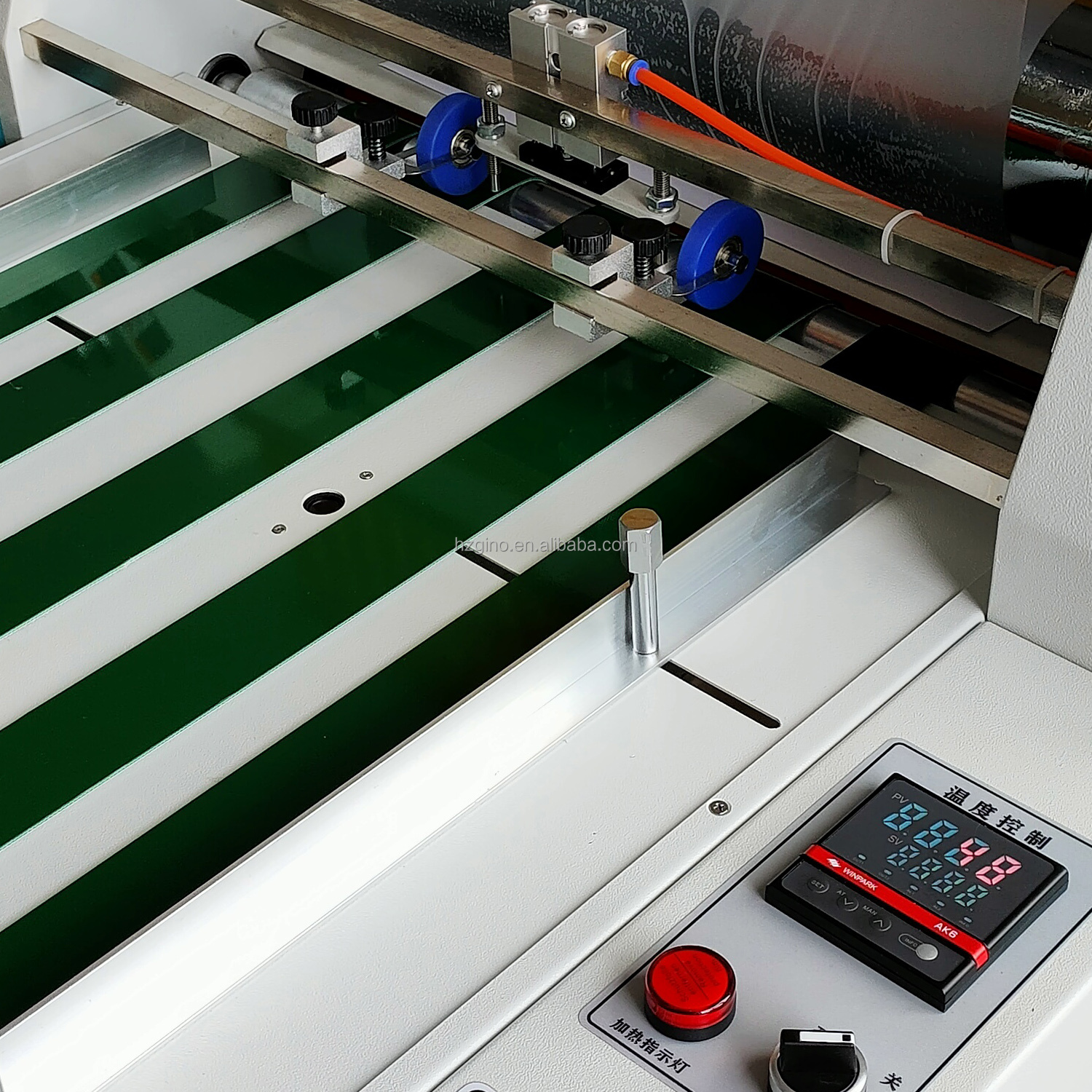

With convey belt, manual feed, auto seperate(pneumatic seperate), with overlap function(the overlap size can be setted);
Speed and temperature adjustable;
Hydraulic control system, Shockproof pressure indicator;
Single side anti-curl, with film cutter and perforating cutter;
With 200mm diameter steel roller, and 100mm diameter bottom slicone roller;
The bottom slicone roller is imported, non-sticky high temperature resistant silicone roller;

Detailed Images

Without paper,machine automatic stop running

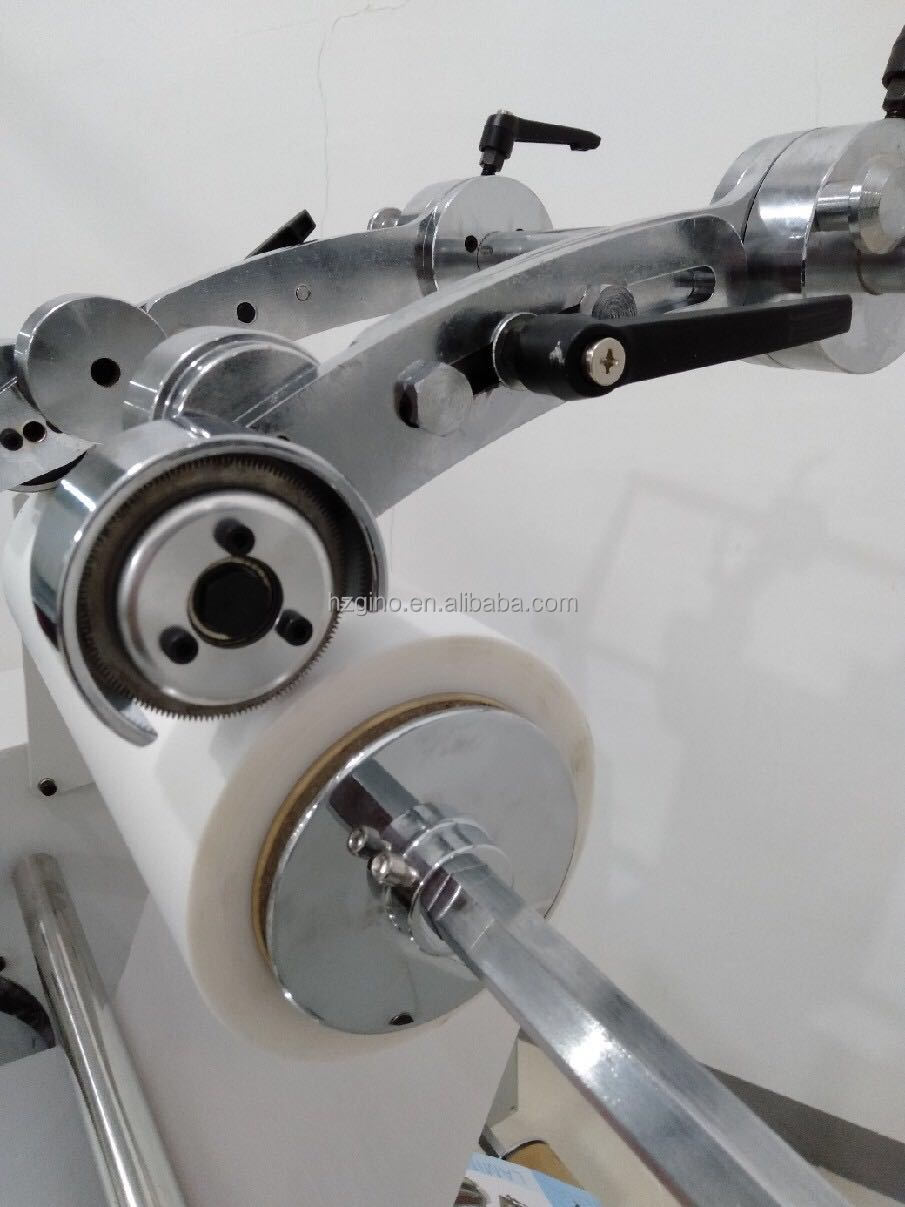

one perforating and slitting paper

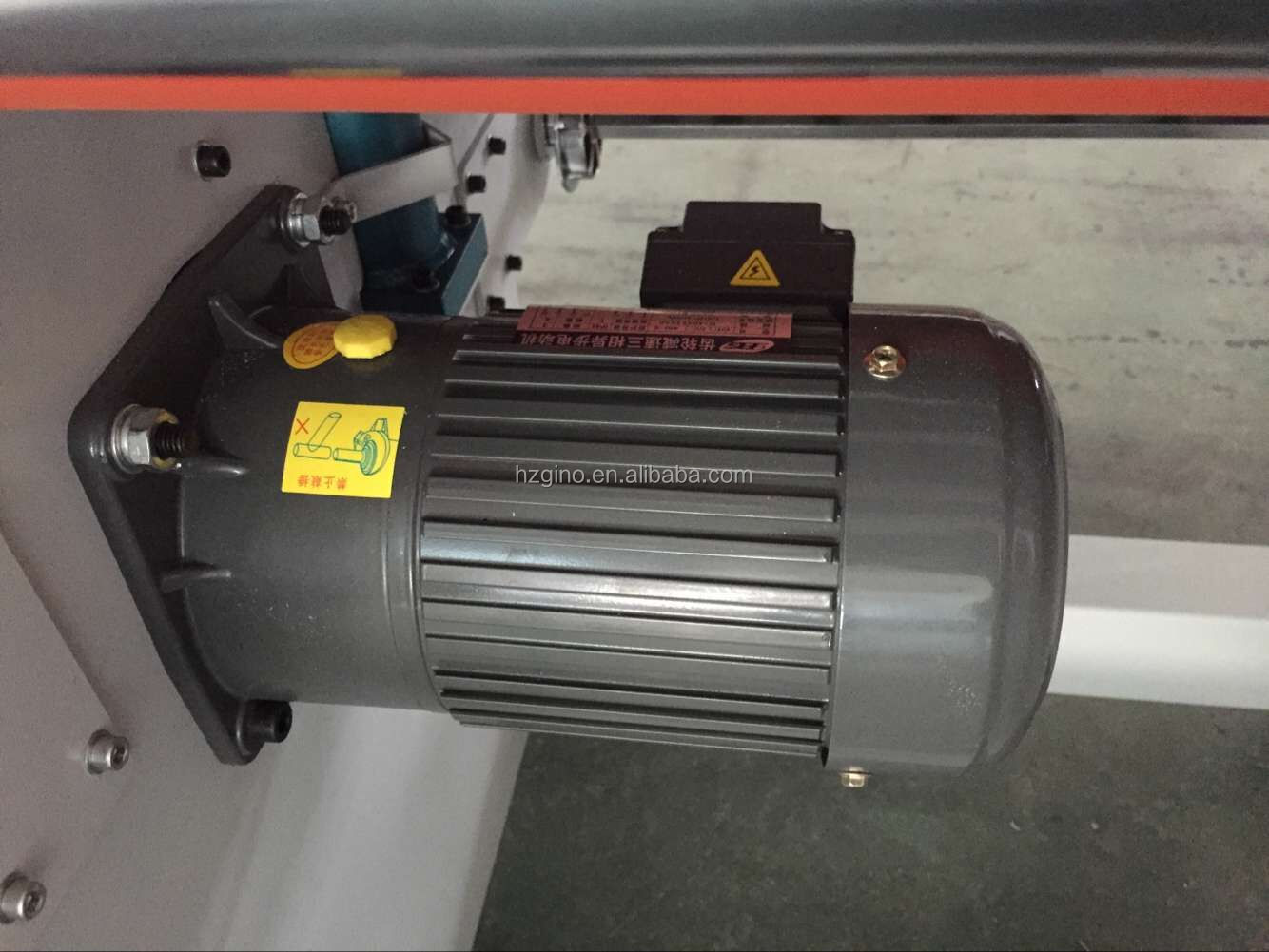

Big power motor

Size Information

Model	HP-720Z
Max laminating width	720mm
Laminating speed	0-20m/min
Up steel roller diameter	200mm
Fix Film Diameter	280mm
Laminating thickness	120-400g
Max. heating temperature	160degree
Heating method	Infrared heating by hot air
Heating power	3500W
Motor power	250W
Weight	410kg
Dimension	210011001500mm(belt length 850mm)
G.W	460KG
Package	170012701380mm
Power supply	AC 220,110V/50,60HZ
