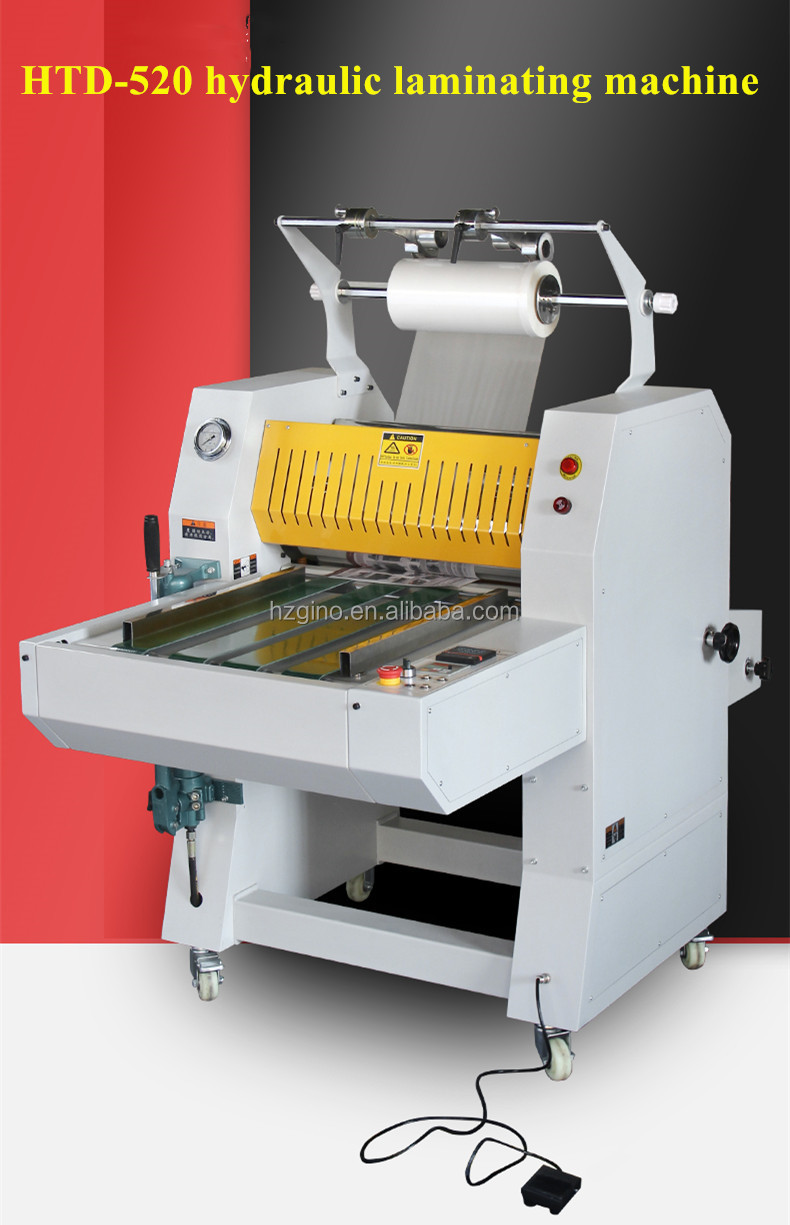

HTD-520 520mm A2 hydraulic roll laminator

520mm Semi automatic hydraulic pressure manual feed auto rewind hot cold roll laminator

HTD-520 hydraulic laminating machine with big pressure and fast speed ,,laminate and optional foil heat transfer.if you are searching one machine can do digital printing laminate ,dark color paper laminate , small quantity laminate job or normal paper laminate ,this machine much fit for your choice .because it occupies a small area ,so fit for print shop and small company;

Get a free quote

Product Detail

laminating width	520mm
laminating speed	0-8m/min
heating steel roller diameter	200mm
temperature	room-160 degree

Descriptions

520mm Semi automatic hydraulic pressure manual feed auto rewind hot cold roll laminator

Feature
Accurate temperature control system, highest 200 degree with two independent temperature control system on the up and bottom roller
High precision of chrome plated heating roller is equipped with built-in oil heating system
Motor:180W Ac motor, 1:60 gear box
Hydraulic pressuring system provides big and steady pressure
Film cutter cuts film width to make it meet paper size
Film perforating wheel perforates film edge to make the separation of laminated paper easy

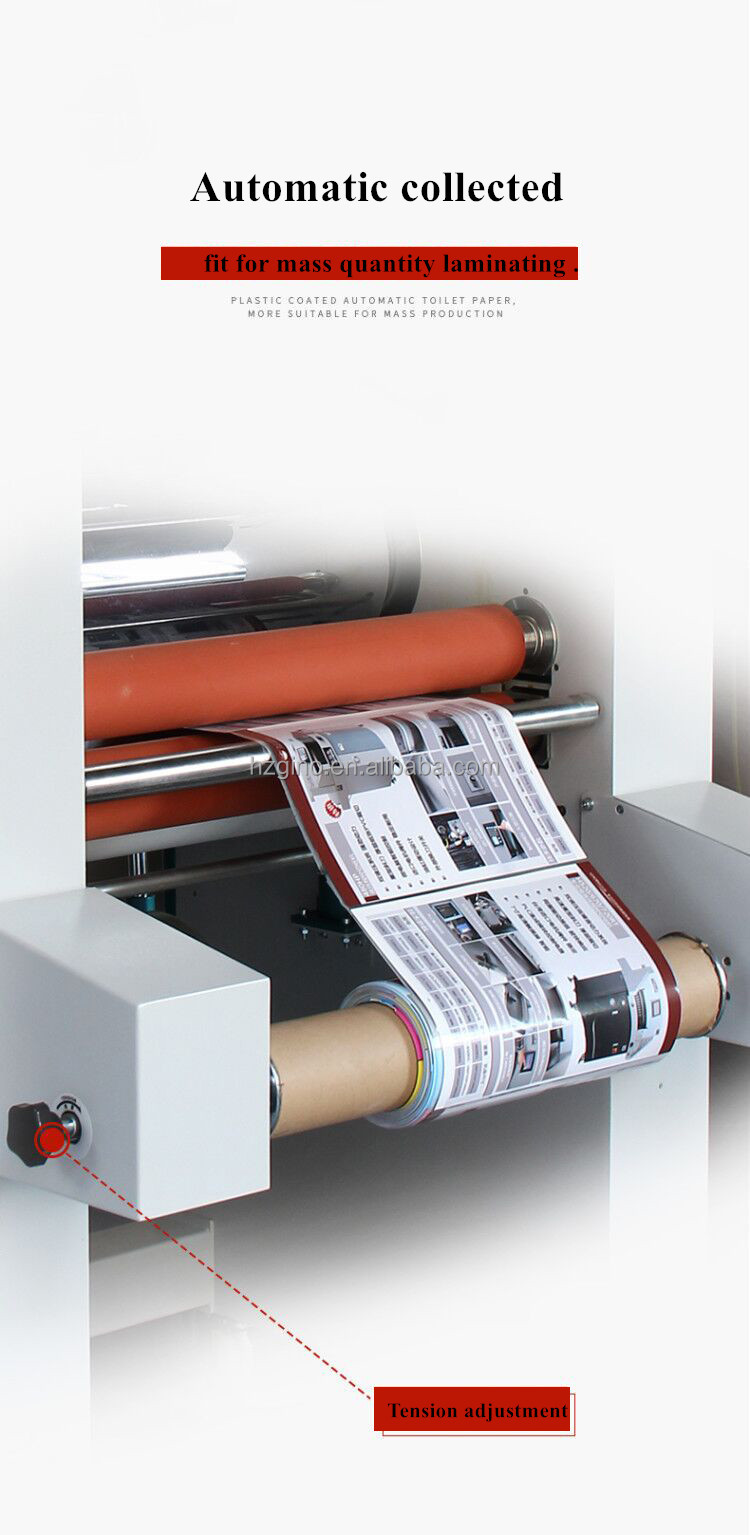

Laminated paper is rolled up automatically by the winding spindle. Winding speed is adjustable upon requests. Winded paper will be cut by manual work
Speed and temperature adjustable

Detailed Images

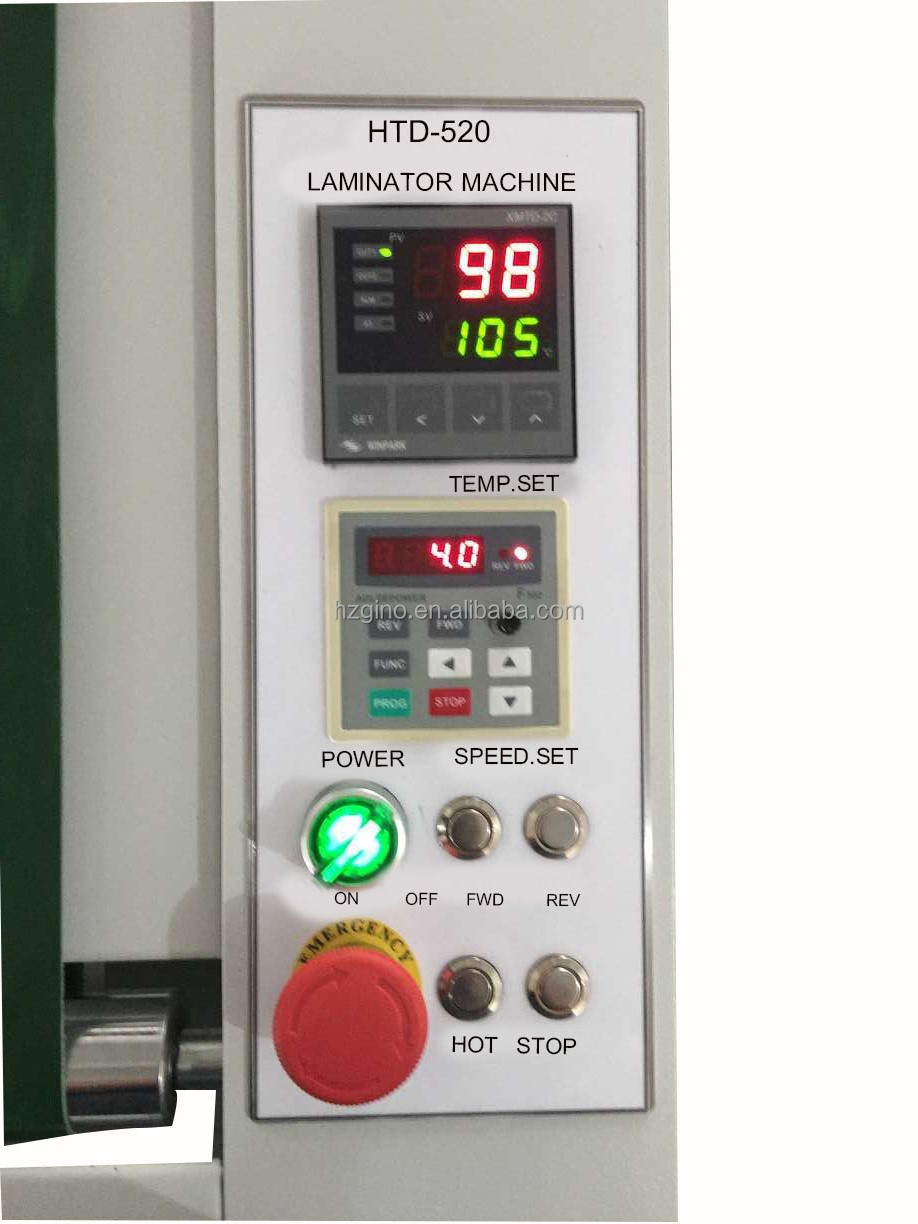

easy control panel,LED display.

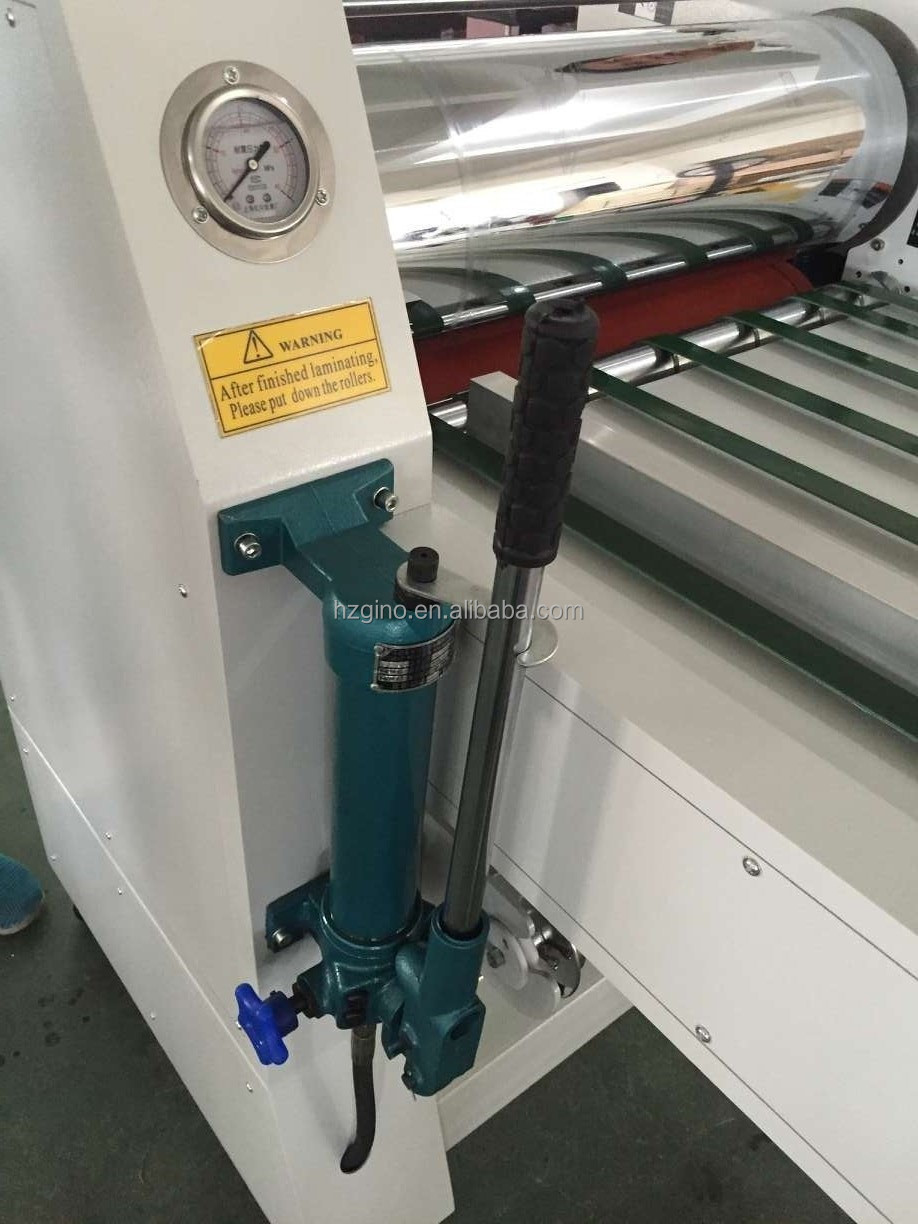

hydraulic pressure control

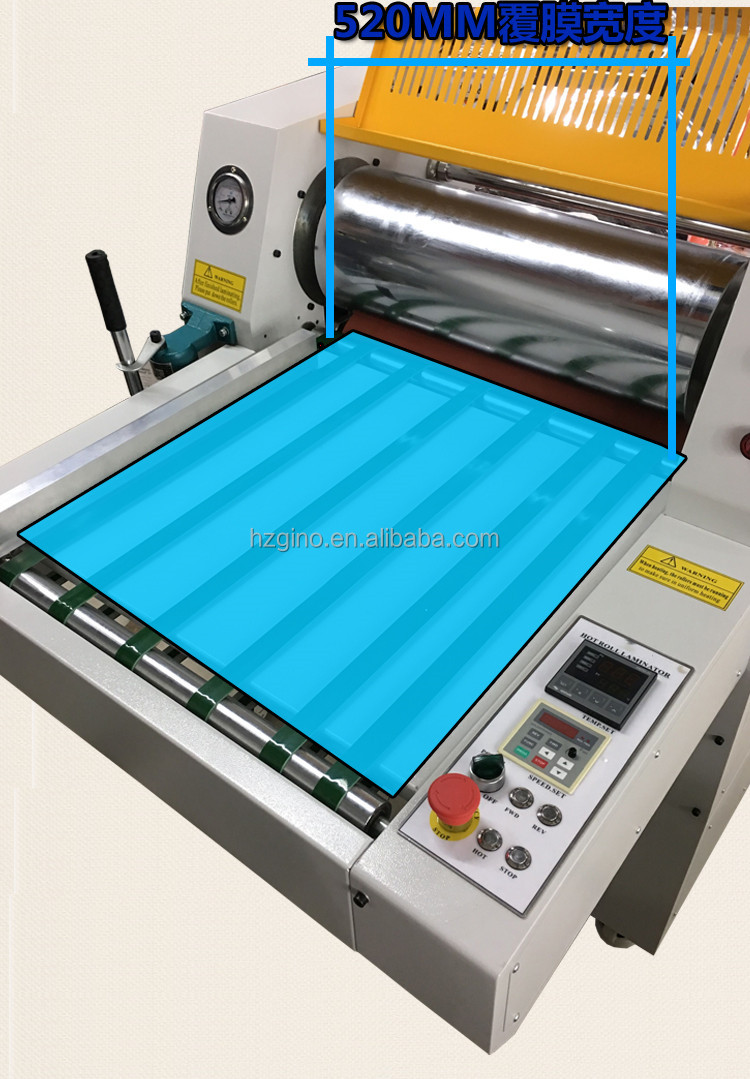

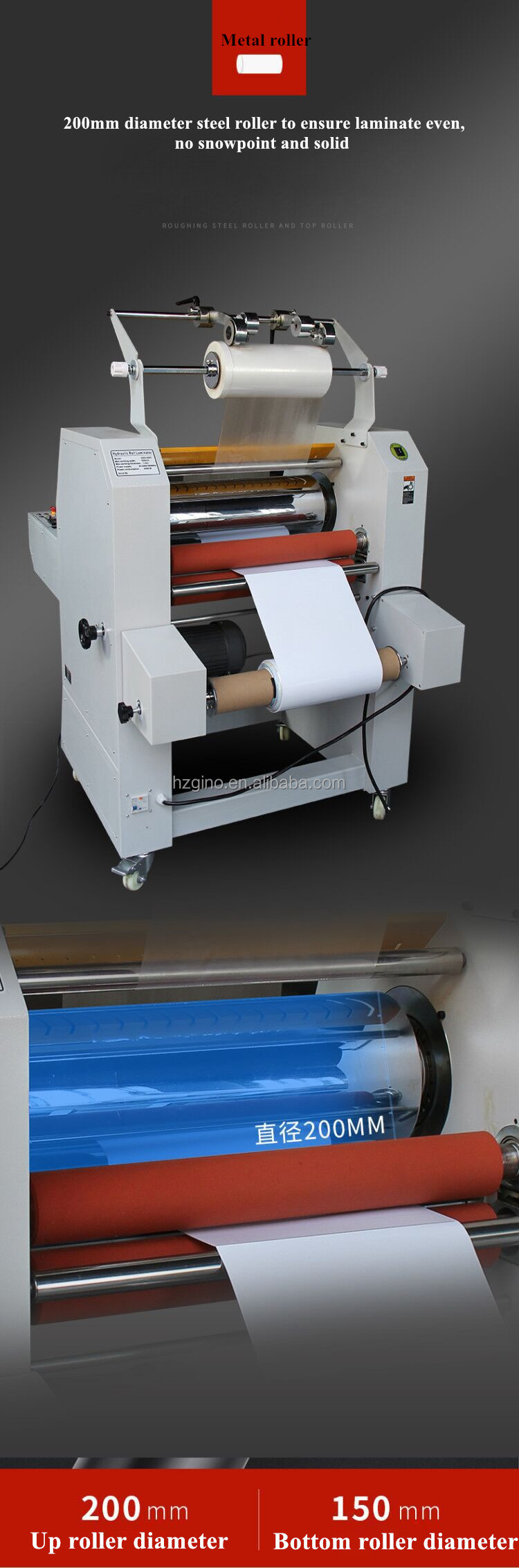

Belt feeding ,520mm laminate width,200mm chrome steel roller to ensure the enough pressure ,fit for digital full dark color paper laminate.

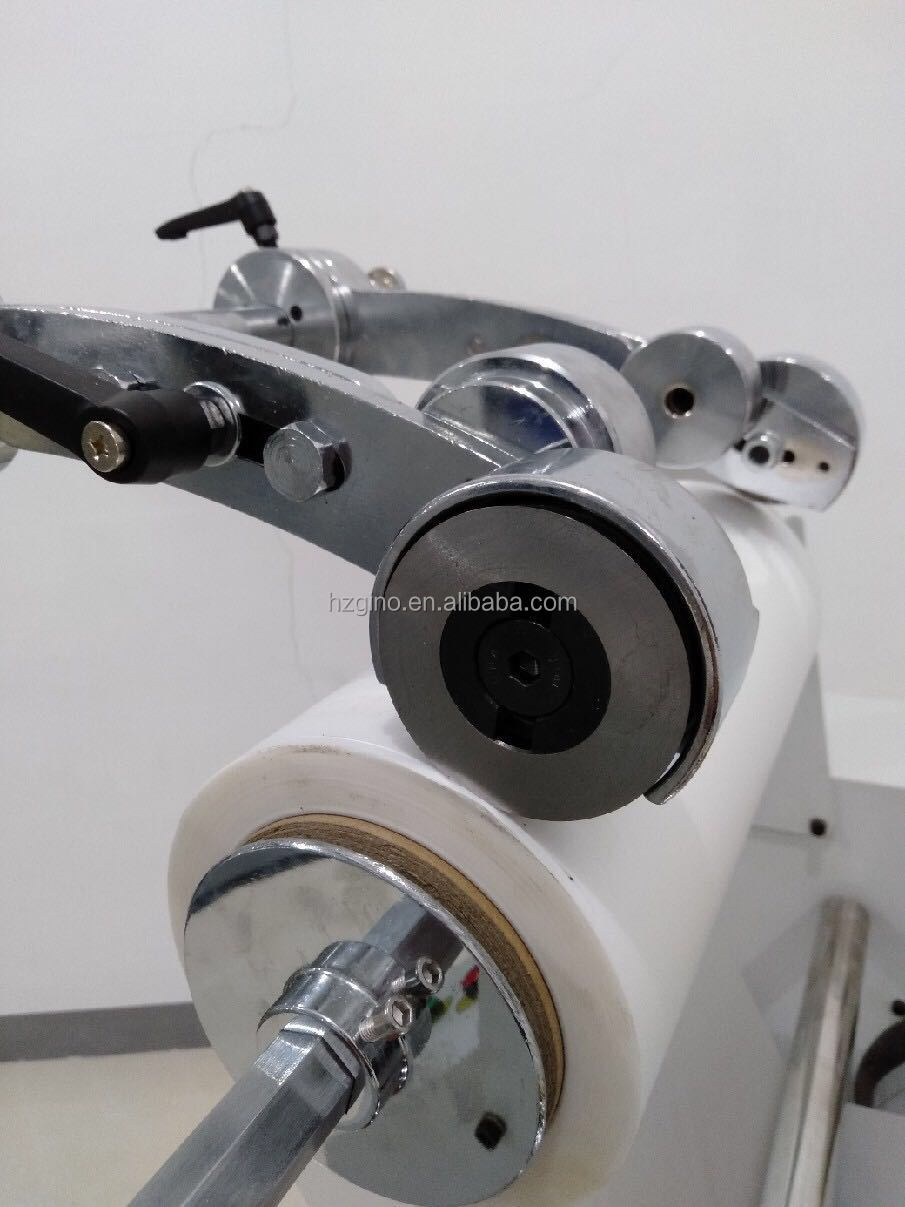

Perforating blade for easy separating after laminating

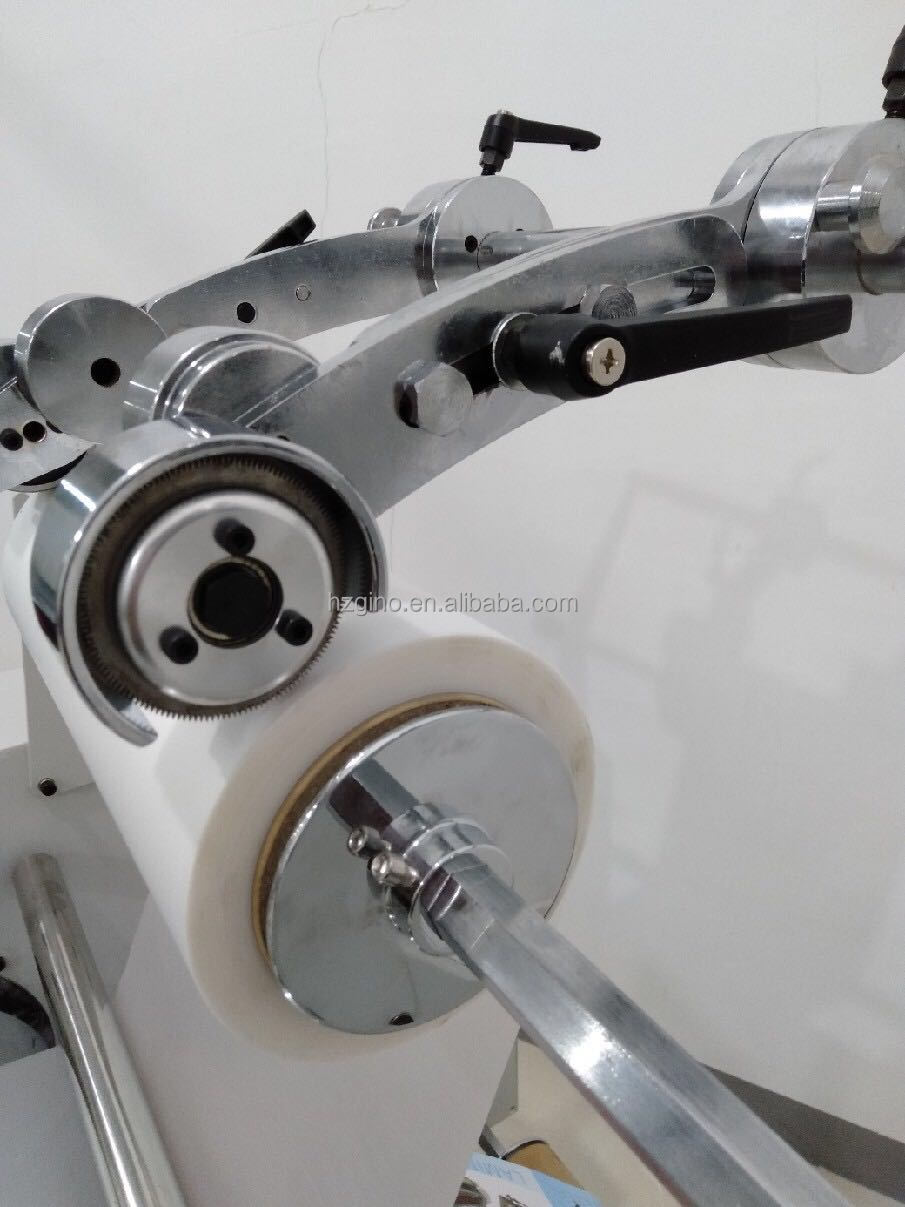

Cutting extra film leave on the bar, neat and save man-power

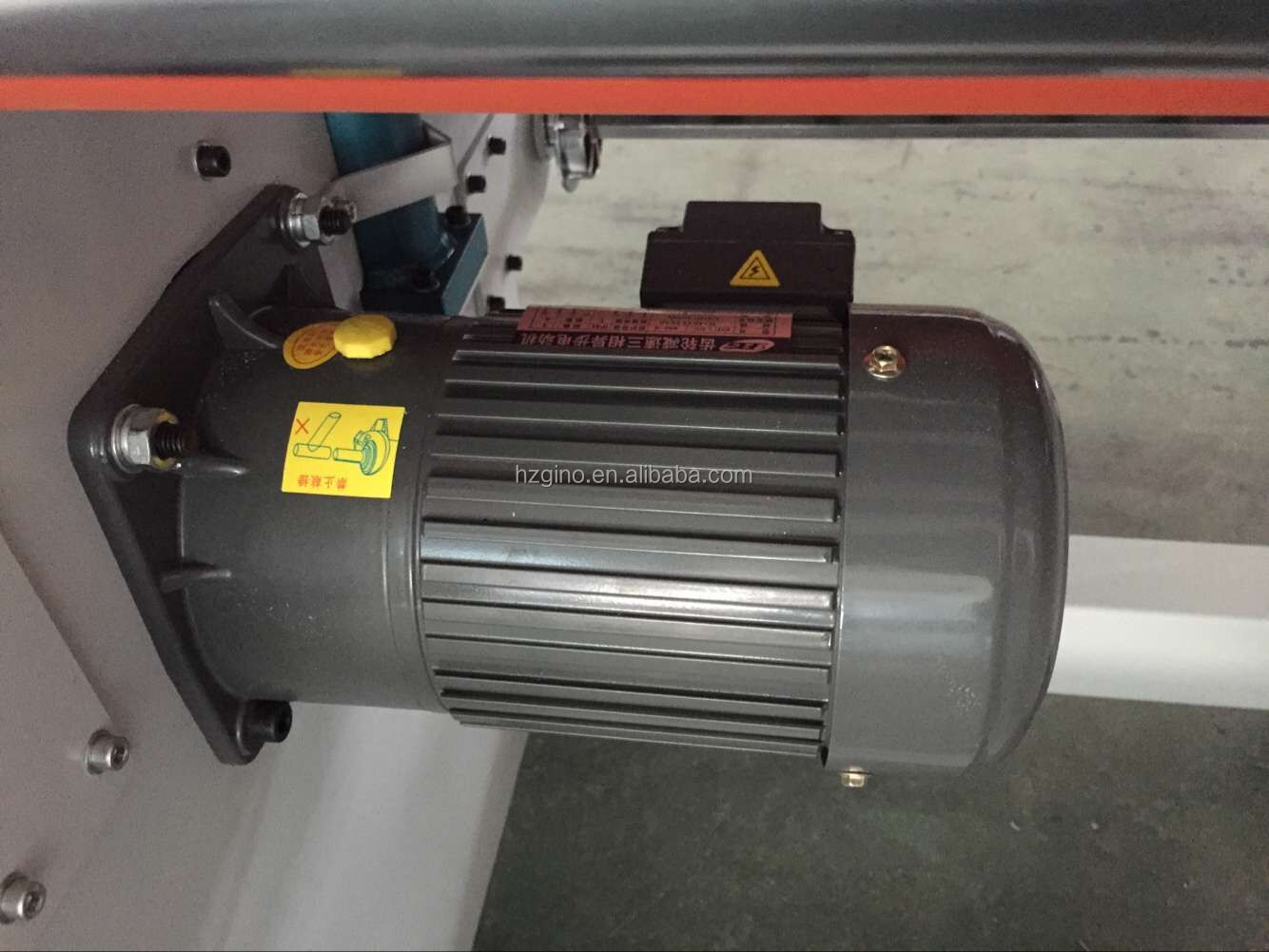

180W AC big power

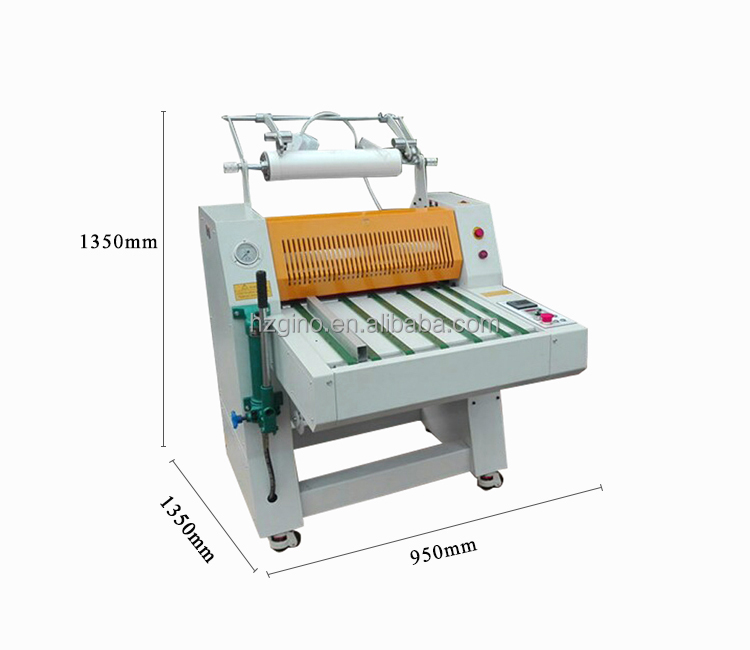

Size Information

Model	HTD-520
Max. laminating width	520mm
Speed	0-8m/min adjustable
Temperature	0-140 degree
Roller diameter	200mm
Motor	400W AC gear box motor
Pressure	hydraulic, adjustable
Voltage	AC 220V 50HZ
Power	3900W
weight	300kg
