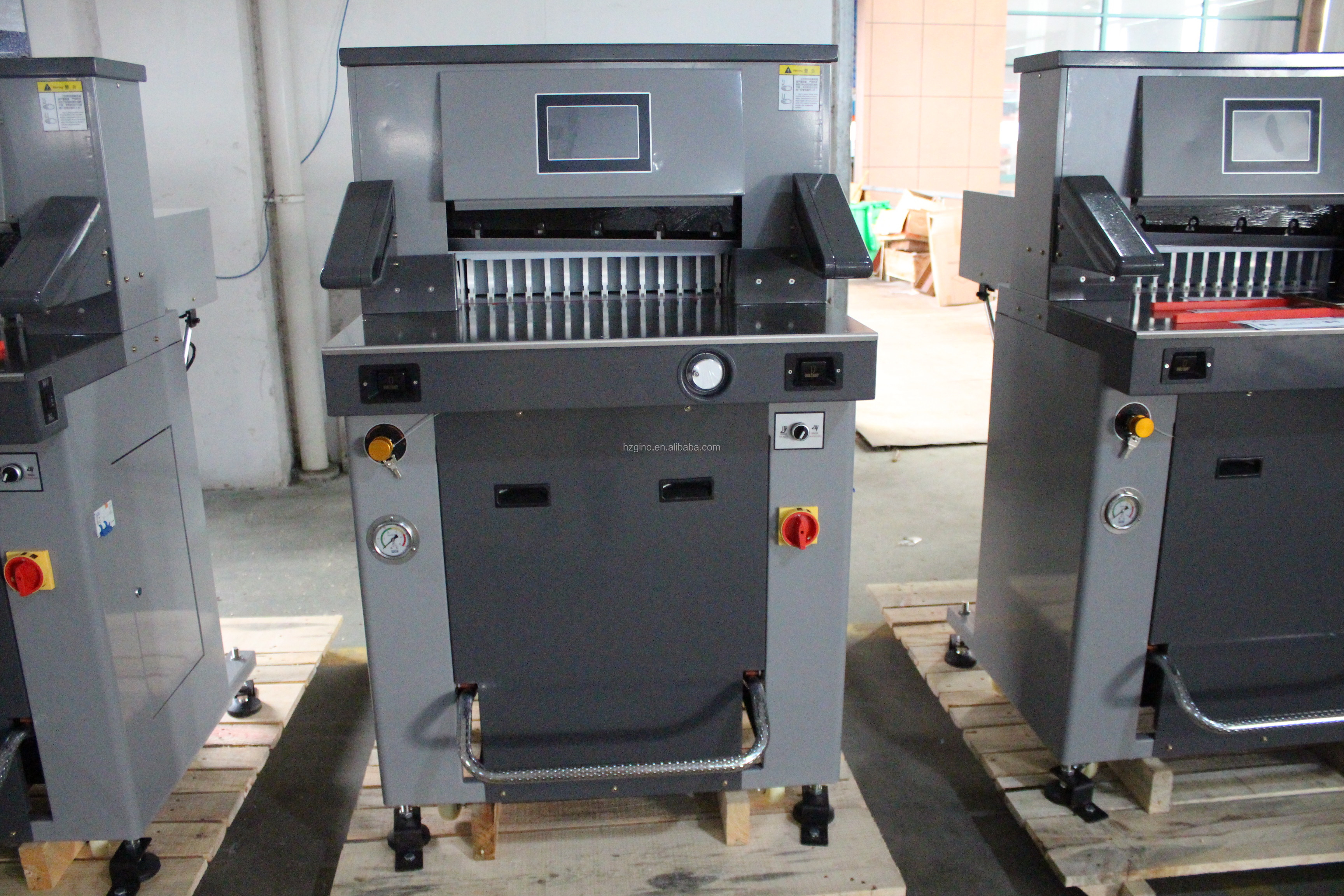

Hydraulic Paper Guillotine Machine

H490TV7 Hydraulic Paper Guillotine

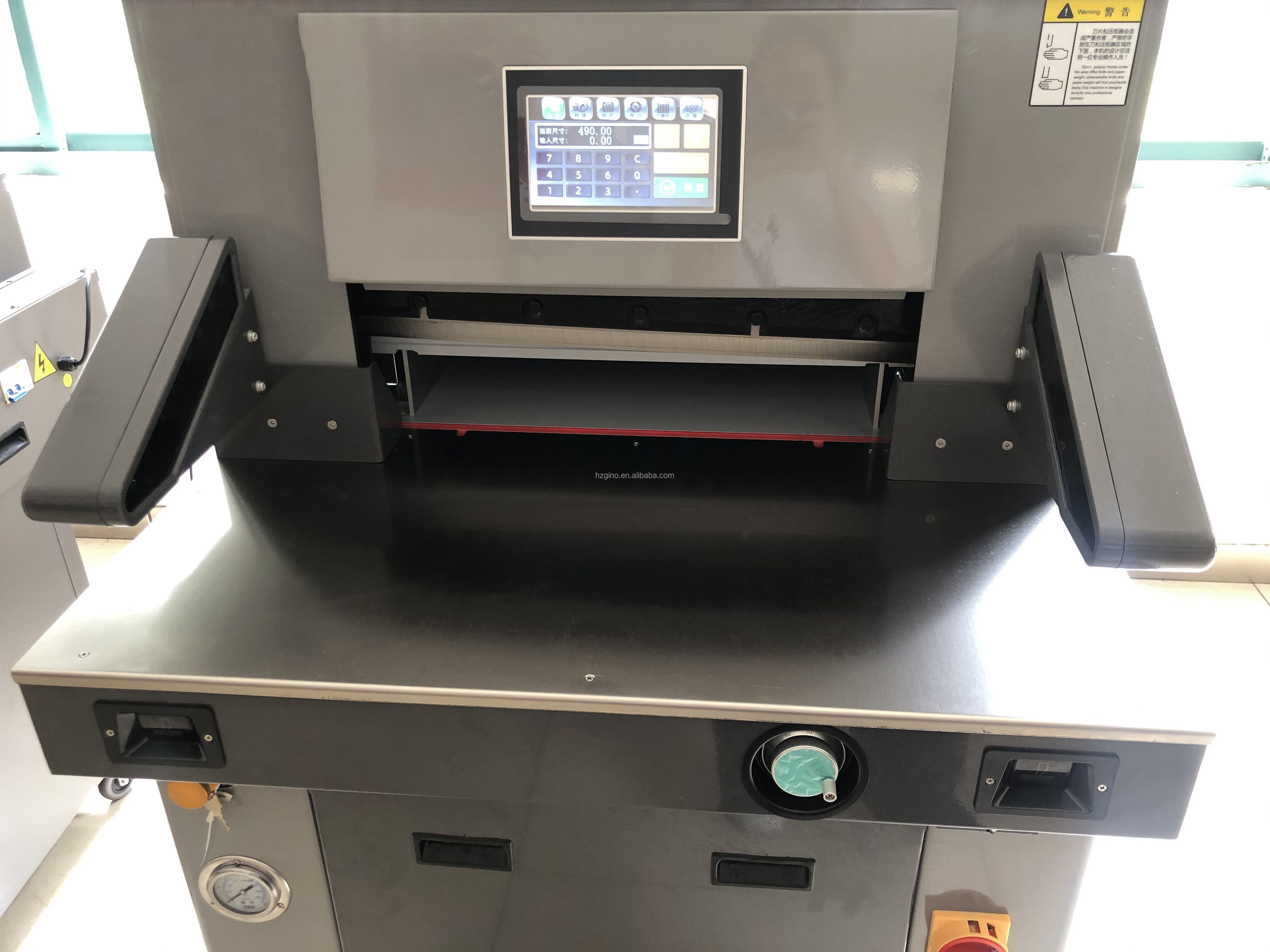

1. 7'' Touch screen,Micro computer PLC control board, more convenient for operation;

2. 100groups*96steps program for repeat cuts.

3.Hydraulic+mechanical pedal;

4.Infrared photoelectric safety protection circuit design

Get a free quote

Product Detail

max cutting thickness	80mm
cutting precision	±0.2

Descriptions

Product Overview

Infrared safety protection design.
Man-machine interface design,100 groups*96 cuts program.

Back platform without groove design， overhanging ball screw push paper more stable.

Patent for oblique cutting paper，cutting more easliy, suitable for thick paper cutting.

Push book platform can be folded,covenient transportation.

Dual hydraulic power control system.

Mechanical foot, cut riding nail book pre-alignment more convenient, higher precision

FEATURES AT A GLANCE

PRODUCT SPECIFICATIONS

Item Number:	H490TV7
Max. Cutting Size	490*490mm
Min. Cutting Size	30mm/1.18"
Cutting Thickness	80mm/3.15"
Cutting Accuracy	±0.2mm
Clamp Operation	Hydraulic+Pedal
Push Paper motor	Step motor
Pushing Paper Mode	program-control
Cutting Paper Mode	Programmable, PLC control board
Side table	Optional
Display	7"LCD, Touch Screen
Table	Stainless steel table
Power	220V(110V)±10% 50Hz(60Hz) 2350W
Net Weight	390kg
Dimensions	139110139cm
