notebook booklet Maker machine

Desktop Booklet maker binding machine

A3 Manual booklet maker

Folds,staples and ejects in one movement
Takes up to A3 size
Simple to operate
Saddle stitching
Saddle stapling
Folds, staples and ejects in one movement

Get a free quote

Product Detail

Max. Feeding Size	315×435mm
Min paper size	148×210mm
Max stapling capacity	20 sheets of 80gsm
Max folding capacity	17sheets of 80gsm
Stapling options	Side staple, saddle staples
Speed	300 books /hour

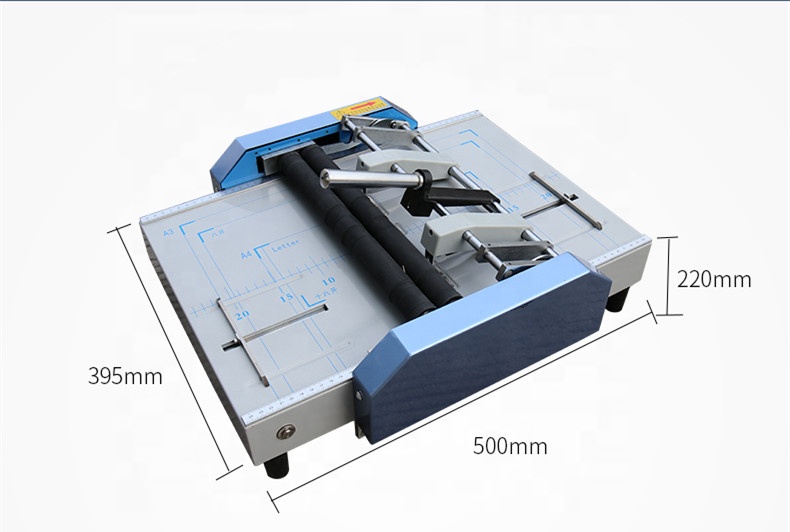

Dimensions(WxDxH)	560×460×210mm
N. W	20KG
Operation mode	Manual / Electric motor

Descriptions

Update Zy-2 booklet binding machine

Feature
New type manual booklet maker.

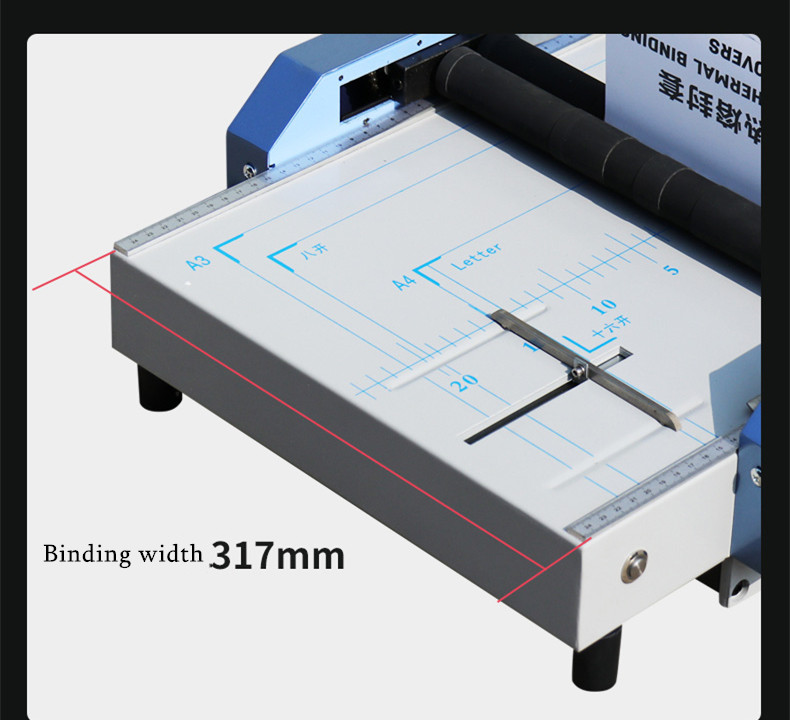

Max. feeding width is 317mm.
Cabinet appearance, operate easily.
The ways of binding are saddle binding, folding, side binding, corner binding, and so on.
This machine is used for binding books and booklets in copy shop, printing house, office, schools, and so on.

Working samples

Detailed Images

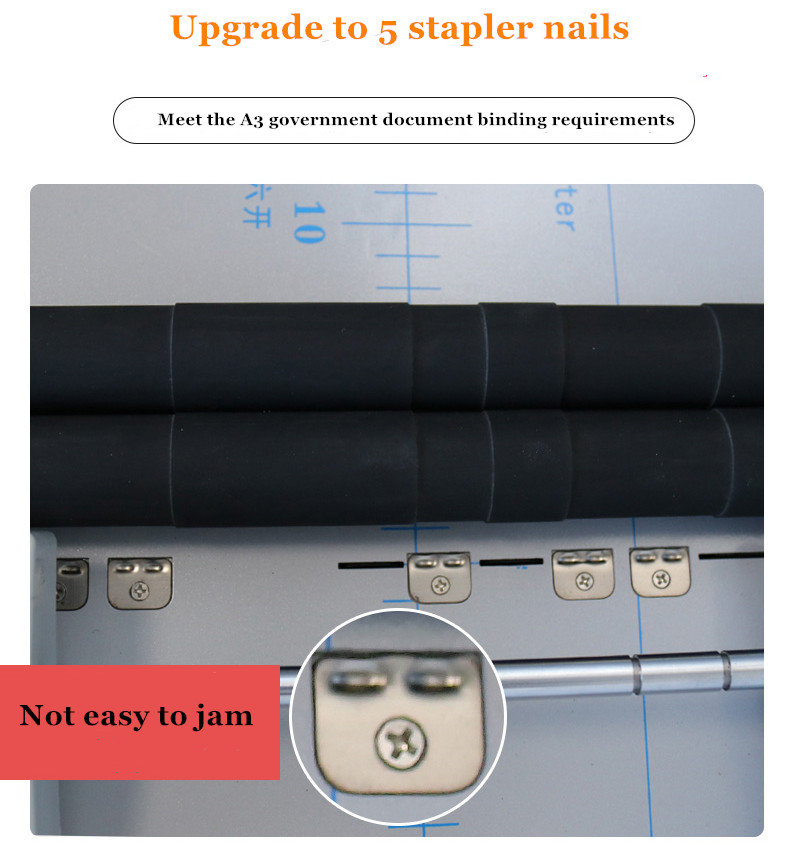

.five Stitching position,to meet different requirement ;

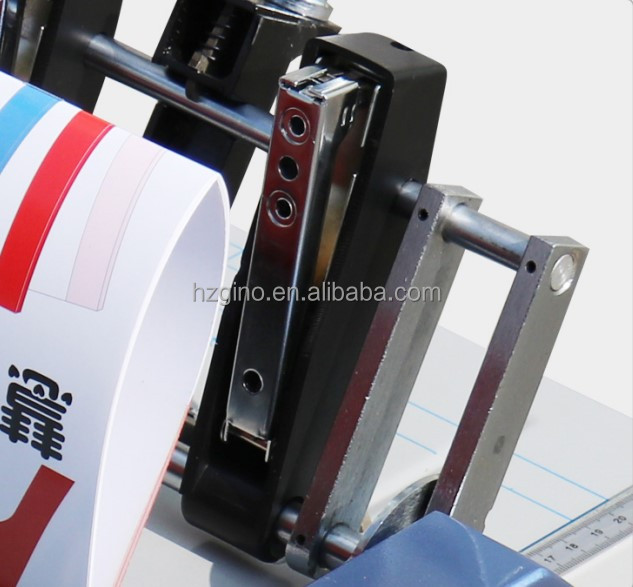

Two arms to ensure the pressure on the binding stitch be more steady and not easily destoryed ;

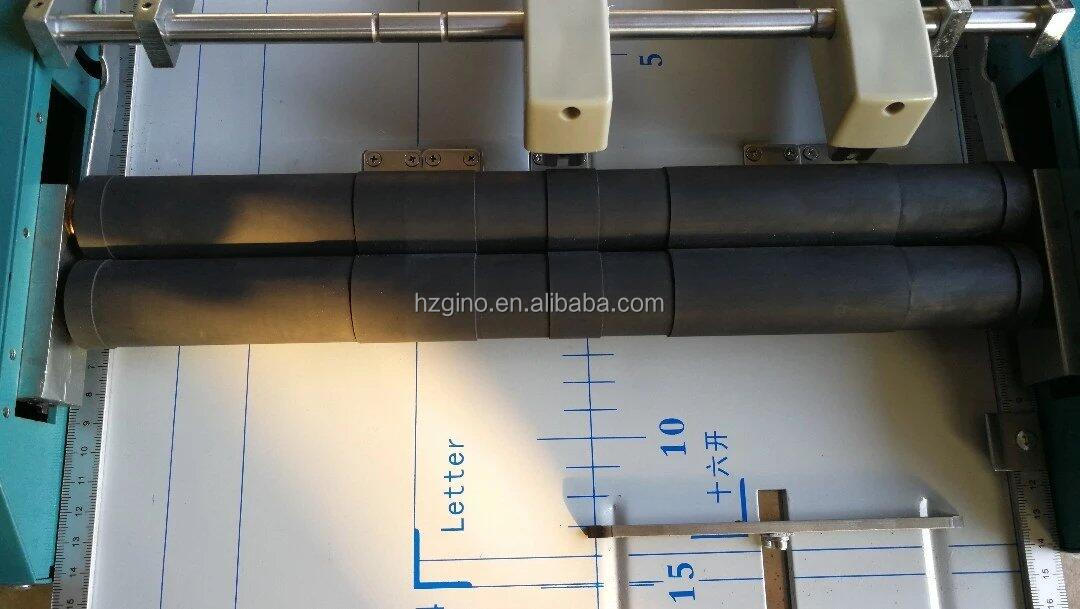

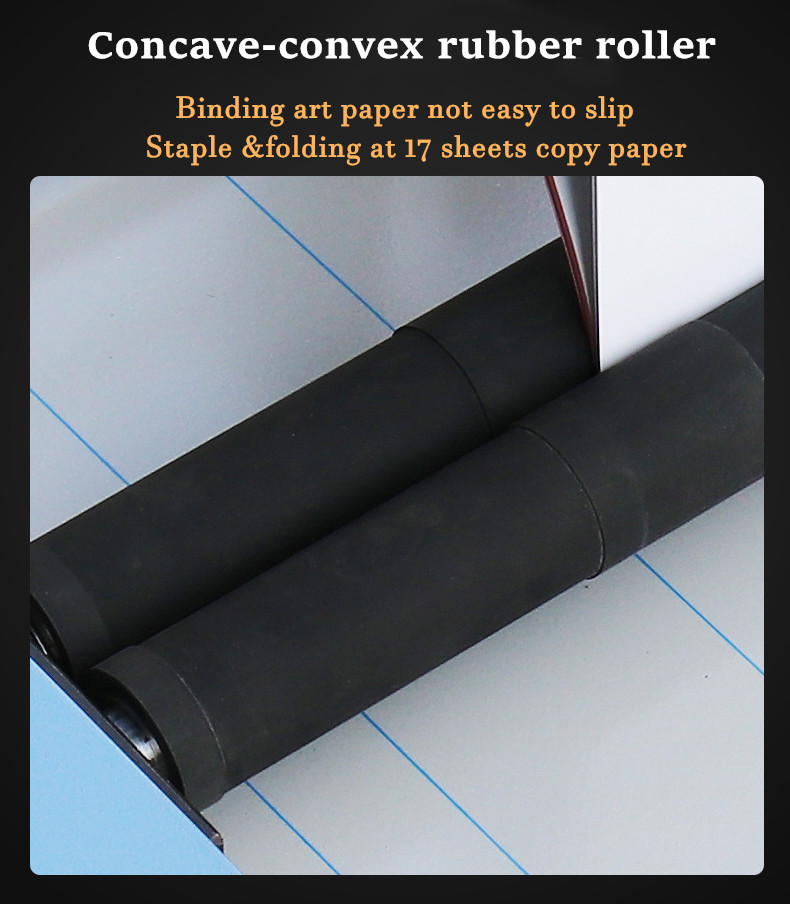

the Bumpy roller will be add friction easy to bind 17 sheet 80g offset paper;

Size Information

Model	ZY-2 5 stapler nails booklet binding machine
Max. Feeding Size	315×435mm(A3+)
Min. Feeding Size	148×210mm
Staple needle	24/6
Max. Binding Capacity (Side Binding)	20 sheets of 80gsm
Max. Folding Capacity	17sheets of 80gsm
Speed	300 books /hour
Power Supply	AC220V/50Hz 60W
Machine Dimension	560×460×210mm
Machine Weight	20KG
